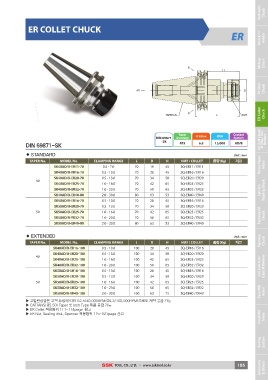

ER COLLET CHUCK ER Shrink Fit
Holder

B Milling
H Chuck

AD D

SK Slim
Chuck

TAPER No. B L NUT ER Collet
Chuck

DIN 69871-SK DIN 69871 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
- SK Accuracy 6.3 15,000 System
AD/B
AT3

◆ STANDARD Unit : mm Morse Taper

TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고 Arbor

SK40AD/B-ER11-70 0.5 - 7.0 70 19 45 SQ-ER11 / ER11

SK40AD/B-ER16-70 0.5 - 10.0 70 28 45 SQ-ER16 / ER16

40 SK40AD/B-ER20-70 0.5 - 13.0 70 34 50 SQ-ER20 / ER20 Tapping Chuck
SK40AD/B-ER25-70 1.0 - 16.0 70 42 65 SQ-ER25 / ER25
Synchro
SK40AD/B-ER32-70 1.0 - 20.0 70 50 65 SQ-ER32 / ER32

SK40AD/B-ER40-80 2.0 - 30.0 80 63 53 SQ-ER40 / ER40

SK50AD/B-ER16-70 0.5 - 10.0 70 28 45 SQ-ER16 / ER16

SK50AD/B-ER20-70 0.5 - 13.0 70 34 50 SQ-ER20 / ER20 Tapping ER
Chuck
50 SK50AD/B-ER25-70 1.0 - 16.0 70 42 65 SQ-ER25 / ER25

SK50AD/B-ER32-70 1.0 - 20.0 70 50 65 SQ-ER32 / ER32

SK50AD/B-ER40-80 2.0 - 30.0 80 63 53 SQ-ER40 / ER40

◆ EXTENDED Unit : mm Tapping
재고 Chuck
TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg)
45 SQ-ER16 / ER16
SK40AD/B-ER16-100 0.5 - 10.0 100 28 50 SQ-ER20 / ER20
65 SQ-ER25 / ER25
40 SK40AD/B-ER20-100 0.5 - 13.0 100 34 65 SQ-ER32 / ER32 Side Lock Arbor
SK40AD/B-ER25-100 1.0 - 16.0 100 42 45 SQ-ER16 / ER16 & End Mill Holder
50 SQ-ER20 / ER20
SK40AD/B-ER32-100 1.0 - 20.0 100 50 65 SQ-ER25 / ER25
65 SQ-ER32 / ER32
SK50AD/B-ER16-100 0.5 - 10.0 100 28 75 SQ-ER40 / ER40

SK50AD/B-ER20-100 0.5 - 13.0 100 34

50 SK50AD/B-ER25-100 1.0 - 16.0 100 42

SK50AD/B-ER32-100 1.0 - 20.0 100 50 Face Mill
Arbor
SK50AD/B-ER40-100 2.0 - 30.0 100 63

▶ 고발란싱급은 고객 요청에 따라 G2.5/40,000RPM(G6.3/100,000RPM)으로도 제작 공급 가능 Shell Mill
▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능 Arbor
▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 105 Accessory
