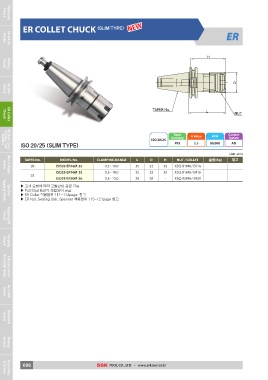

Shrink Fit ER COLLET CHUCK (SLIMTYPE) NEW ER
Holder
H
Milling
Chuck
SK Slim D
Chuck
ER Collet TAPER No. L NUT
Chuck
N&COHDtorhilldel reCTrhsouoclk ISO 20/25 Taper G Value RPM Coolant
Accuracy 2.5 30,000 System
ISO 20/25 (SLIM TYPE)
AT3 AD
Morse Taper Unit : mm
Arbor TAPER No. MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고
20 ISO20-ER16M-35 0.5 - 10.0 35
ISO25-ER16M-35 0.5 - 10.0 35 22 35 XSQ-R16M / ER16
25 ISO25-ER20M-36 0.5 - 13.0 36
22 35 XSQ-R16M / ER16
Tapping Chuck 28 - XSQ-R20M / ER20
Synchro ▶ 고객 요청에 따라 고발란싱 공급 가능
▶ Pull Stud Bolt가 조립되어 공급
▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고
