Page 95 - SSK

Hydraulic
Chuck

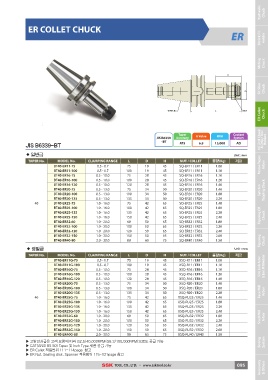

ER COLLET CHUCK ER Shrink Fit
Holder

Milling
Chuck

H

D

SK Slim
Chuck

TAPER No. L NUT ER Collet
Chuck

JIS B6339-BT JIS B6339 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
- BT Accuracy 6.3 15,000 System

AT3 AD
Unit : mm
◆ 일반급 MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고 Morse TaperArbor

TAPER No. BT40-ER11-75 0.5 - 0.7 75 19 45 SQ-ER11 / ER11 1.00 Unit : mm
BT40-ER11-100 0.5 - 0.7 100 19 재고
40 BT40-ER16-75 0.5 - 10.0 75 28 45 SQ-ER11 / ER11 1.10
BT40-ER16-100 0.5 - 10.0 100 28 095
BT40-ER16-120 0.5 - 10.0 120 28 45 SQ-ER16 / ER16 1.10
BT40-ER20-75 0.5 - 13.0 75 34
BT40-ER20-100 0.5 - 13.0 100 34 45 SQ-ER16 / ER16 1.20 Tapping Chuck
BT40-ER20-135 0.5 - 13.0 135 34
BT40-ER25-75 1.0 - 16.0 75 42 45 SQ-ER16 / ER16 1.40 Synchro
BT40-ER25-100 1.0 - 16.0 100 42
BT40-ER25-135 1.0 - 16.0 135 42 50 SQ-ER20 / ER20 1.40
BT40-ER25-150 1.0 - 16.0 150 42
BT40-ER32-60 1.0 - 20.0 60 50 50 SQ-ER20 / ER20 1.80
BT40-ER32-100 1.0 - 20.0 100 50
BT40-ER32-120 1.0 - 20.0 120 50 50 SQ-ER20 / ER20 2.20
BT40-ER32-150 1.0 - 20.0 150 50
BT40-ER40-80 2.0 - 30.0 80 63 65 SQ-ER25 / ER25 1.40

65 SQ-ER25 / ER25 1.80 Tapping ER
Chuck
65 SQ-ER25 / ER25 2.20

65 SQ-ER25 / ER25 2.40

65 SQ-ER32 / ER32 1.80

65 SQ-ER32 / ER32 2.20

65 SQ-ER32 / ER32 2.40

65 SQ-ER32 / ER32 2.60 Tapping
Chuck
75 SQ-ER40 / ER40 1.50

◆ 정밀급 MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) Side Lock Arbor
& End Mill Holder
TAPER No. BT40-ER11G-75 0.5 - 0.7 75 19 45 XSQ-R11 / ER11 1.00
BT40-ER11G-100 0.5 - 0.7 100 19 45 XSQ-R11 / ER11 1.10 Face Mill
40 BT40-ER16G-75 0.5 - 10.0 75 28 45 XSQ-R16 / ER16 1.10 Arbor
BT40-ER16G-100 0.5 - 10.0 100 28 45 XSQ-R16 / ER16 1.20
BT40-ER16G-120 0.5 - 10.0 120 28 45 XSQ-R16 / ER16 1.40 Shell Mill
BT40-ER20G-75 0.5 - 13.0 75 34 50 XSQ-R20 / ER20 1.40 Arbor
BT40-ER20G-100 0.5 - 13.0 100 34 50 XSQ-R20 / ER20 1.80
BT40-ER20G-135 0.5 - 13.0 135 34 50 XSQ-R20 / ER20 2.20
BT40-ER25G-75 1.0 - 16.0 75 42 65 XSQ-RU25 / ER25 1.40
BT40-ER25G-100 1.0 - 16.0 100 42 65 XSQ-RU25 / ER25 1.80
BT40-ER25G-135 1.0 - 16.0 135 42 65 XSQ-RU25 / ER25 2.20
BT40-ER25G-150 1.0 - 16.0 150 42 65 XSQ-RU25 / ER25 2.40
BT40-ER32G-60 1.0 - 20.0 60 50 65 XSQ-RU32 / ER32 1.80
BT40-ER32G-100 1.0 - 20.0 100 50 65 XSQ-RU32 / ER32 2.20
BT40-ER32G-120 1.0 - 20.0 120 50 65 XSQ-RU32 / ER32 2.40
BT40-ER32G-150 1.0 - 20.0 150 50 65 XSQ-RU32 / ER32 2.60
BT40-ER40G-80 2.0 - 30.0 80 63 75 XSQ-RU40 / ER40 1.50

▶ 고발란싱급은 고객 요청에 따라 G2.5/40,000RPM(G6.3/100,000RPM)으로도 공급 가능 Boring
▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능 System
▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

TOOL CO., LTD. www.ssktool.co.kr Accessory
& Others
