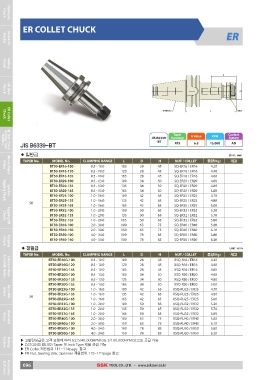

Page 96 - SSK

Hydraulic
Chuck

Shrink Fit ER COLLET CHUCK ER
Holder

Milling
Chuck

H

SK Slim D
Chuck

ER Collet TAPER No. L NUT
Chuck

N&COHDtorhilldel reCTrhsouoclk JIS B6339-BT JIS B6339 Taper G Value RPM Coolant
- BT Accuracy 6.3 15,000 System

AT3 AD
Unit : mm
ArborMorse Taper ◆ 일반급 MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg) 재고

TAPER No. BT50-ER16-100 0.5 - 10.0 100 28 45 SQ-ER16 / ER16 4.20 Unit : mm
BT50-ER16-120 0.5 - 10.0 120 28 재고
50 BT50-ER16-165 0.5 - 10.0 165 28 45 SQ-ER16 / ER16 4.40
BT50-ER20-100 0.5 - 13.0 100 34
BT50-ER20-135 0.5 - 13.0 135 34 45 SQ-ER16 / ER16 4.60
BT50-ER20-165 0.5 - 13.0 165 34
Tapping Chuck BT50-ER25-100 1.0 - 16.0 100 42 50 SQ-ER20 / ER20 4.60
BT50-ER25-135 1.0 - 16.0 135 42
Synchro BT50-ER25-165 1.0 - 16.0 165 42 50 SQ-ER20 / ER20 4.80
BT50-ER32-100 1.0 - 20.0 100 50
BT50-ER32-135 1.0 - 20.0 135 50 50 SQ-ER20 / ER20 5.00
BT50-ER32-165 1.0 - 20.0 165 50
BT50-ER40-100 2.0 - 30.0 100 63 65 SQ-ER25 / ER25 4.70
BT50-ER40-150 2.0 - 30.0 150 63
BT50-ER50-100 4.0 - 34.0 100 78 65 SQ-ER25 / ER25 4.80
BT50-ER50-150 4.0 - 34.0 150 78
Tapping ER 65 SQ-ER25 / ER25 5.00
Chuck
65 SQ-ER32 / ER32 5.20

65 SQ-ER32 / ER32 5.70

65 SQ-ER32 / ER32 5.80

75 SQ-ER40 / ER40 5.60

75 SQ-ER40 / ER40 6.10

Tapping 85 SQ-ER50 / ER50 5.80
Chuck
85 SQ-ER50 / ER50 6.30

Side Lock Arbor ◆ 정밀급 MODEL No. CLAMPING RANGE L D H NUT / COLLET 중량(Kg)
& End Mill Holder
TAPER No. BT50-ER16G-100 0.5 - 10.0 100 28 45 XSQ-R16 / ER16 4.20
Face Mill BT50-ER16G-120 0.5 - 10.0 120 28 45 XSQ-R16 / ER16 4.40
Arbor 50 BT50-ER16G-165 0.5 - 10.0 165 28 45 XSQ-R16 / ER16 4.60
BT50-ER20G-100 0.5 - 13.0 100 34 50 XSQ-R20 / ER20 4.60
Shell Mill BT50-ER20G-135 0.5 - 13.0 135 34 50 XSQ-R20 / ER20 4.80
Arbor BT50-ER20G-165 0.5 - 13.0 165 34 50 XSQ-R20 / ER20 5.00
BT50-ER25G-100 1.0 - 16.0 100 42 65 XSQ-RU25 / ER25 4.70
BT50-ER25G-135 1.0 - 16.0 135 42 65 XSQ-RU25 / ER25 4.80
BT50-ER25G-165 1.0 - 16.0 165 42 65 XSQ-RU25 / ER25 5.00
BT50-ER32G-100 1.0 - 20.0 100 50 65 XSQ-RU32 / ER32 5.20
BT50-ER32G-135 1.0 - 20.0 135 50 65 XSQ-RU32 / ER32 5.70
BT50-ER32G-165 1.0 - 20.0 165 50 65 XSQ-RU32 / ER32 5.80
BT50-ER40G-100 2.0 - 30.0 100 63 75 XSQ-RU40 / ER40 5.60
BT50-ER40G-150 2.0 - 30.0 150 63 75 XSQ-RU40 / ER40 6.10
BT50-ER50G-100 4.0 - 34.0 100 78 85 XSQ-RU50 / ER50 5.80
BT50-ER50G-150 4.0 - 34.0 150 78 85 XSQ-RU50 / ER50 6.30

Boring ▶ 고발란싱급은 고객 요청에 따라 G2.5/40,000RPM(G6.3/100,000RPM)으로도 공급 가능
System ▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능
▶ ER Collet 적용범위 111-114page 참고
▶ ER Nut, Sealing disk, Spanner 적용범위 115-121page 참고

Accessory 096 TOOL CO., LTD. www.ssktool.co.kr
