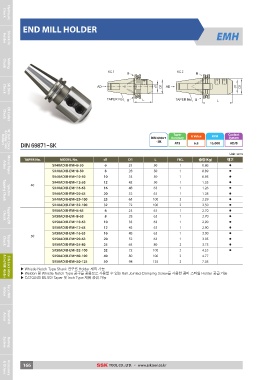

Page 166 - SSK

Hydraulic
Chuck

Shrink Fit END MILL HOLDER EMH
Holder

Milling
Chuck

SK Slim FIG.1 B FIG.2 B
Chuck AD AD

TAPER No. B TAPER No. B
d1
D1
d1
D1

L L

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk DIN 69871-SK DIN 69871 Taper G Value RPM Coolant
- SK Accuracy 6.3 15,000 System
AD/B
AT3

Morse Taper Unit : mm

Arbor TAPER No. MODEL No. d1 D1 L FIG. 중량(Kg) 재고

SK40AD/B-EMH6-50 6 25 50 1 0.86 ●

SK40AD/B-EMH8-50 8 28 50 1 0.89 ●

SK40AD/B-EMH10-50 10 35 50 1 0.95 ●

Tapping ChuckSynchro 40 SK40AD/B-EMH12-50 12 42 50 1 1.03 ●
SK40AD/B-EMH16-63 16 48 63 1 1.26 ●

SK40AD/B-EMH20-63 20 52 63 1 1.28 ●

SK40AD/B-EMH25-100 25 65 100 2 2.29 ●

Tapping ER SK40AD/B-EMH32-100 32 72 100 2 2.50 ●
Chuck
SK50AD/B-EMH6-63 6 25 63 1 2.70 ●

SK50AD/B-EMH8-63 8 28 63 1 2.70 ●

SK50AD/B-EMH10-63 10 35 63 1 2.90 ●

SK50AD/B-EMH12-63 12 42 63 1 2.90 ●

Tapping 50 SK50AD/B-EMH16-63 16 48 63 1 3.00 ●
Chuck SK50AD/B-EMH20-63 20 52 63 1 3.05 ●

SK50AD/B-EMH25-80 25 65 80 2 3.73 ●

SK50AD/B-EMH32-100 32 72 100 2 4.53 ●

Side Lock Arbor SK50AD/B-EMH40-100 40 80 100 2 4.77
& End Mill Holder
SK50AD/B-EMH50-125 50 98 125 2 7.03

▶ Whistle Notch Type Shank 공구용 Holder 제작 가능
▶ Weldon 및 Whistle Notch Type 공구를 공용으로 사용할 수 있는 Ball Jointed Clamping Screw를 사용한 콤비 스타일 Holder 공급 가능
▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능

Face Mill
Arbor

Shell Mill
Arbor

Boring
System

Accessory 166 TOOL CO., LTD. www.ssktool.co.kr
