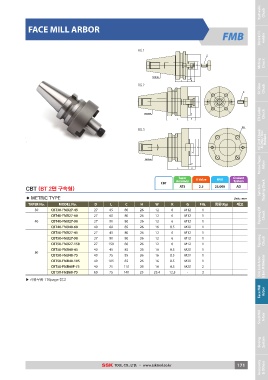

Page 171 - SSK

Hydraulic
Chuck

FACE MILL ARBOR FMB Shrink Fit
Holder

FIG.1

G

W Milling
D Chuck
C

TAPER No. K
LH

FIG.2 SK Slim
Chuck
G

W
D
C

TAPER No. K ER Collet
LH Chuck
FIG.3
M16

W N&COHDtroilhlledreCrThsouoclk
D
C

TAPER No. K Morse TaperArbor
LH
CBT
Taper G Value RPM Coolant Synchro Tapping Chuck
CBT (BT 2면 구속형) Accuracy 2.5 25,000 System

AT3 AD

◆ METRIC TYPE Unit : mm

TAPER No. MODEL No. D L C H W K G FIG. 중량(Kg) 재고

30 CBT30-FMB27-45 27 45 80 26 12 6 M12 1 Tapping ER
Chuck
CBT40-FMB27-60 27 60 80 26 12 6 M12 1

40 CBT40-FMB27-90 27 90 80 26 12 6 M12 1

CBT40-FMB40-60 40 60 85 26 16 8.5 M20 1

CBT50-FMB27-45 27 45 80 26 12 6 M12 1 Tapping
Chuck
CBT50-FMB27-90 27 90 80 26 12 6 M12 1

CBT50-FMB27-150 27 150 80 26 12 6 M12 1

50 CBT50-FMB40-45 40 45 85 26 16 8.5 M20 1
CBT50-FMB40-75
40 75 85 26 16 8.5 M20 1 Side Lock Arbor
& End Mill Holder
CBT50-FMB40-105 40 105 85 26 16 8.5 M20 1

CBT50-FMB40F-75 40 75 110 26 16 8.5 M20 2

CBT50-FMB60-75 60 75 140 25 25.4 12.5 - 3

▶ 사용부품 176page 참고
