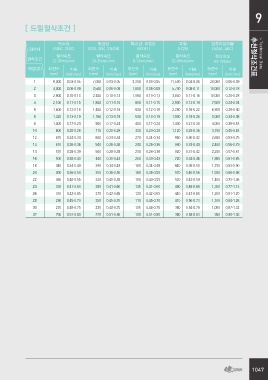

[ 드릴절삭조건 ] 9

피삭재 탄소강 합금강 특수강, 조절강 주철 알루미늄주물 > Technical Data
(S45C, S50C) (SCN, SNC, SNCM) (SKD11) (FC25) (AC4A, ADC)
절삭조건 추천절삭조건표
절삭속도 절삭속도 절삭속도 절삭속도 절삭속도
직경(Ø) 22-30mm/min 20-25mm/min 8-12mm/min 32-40mm/min 63-100min

1 회전수 이송 회전수 이송 회전수 이송 회전수 이송 회전수 이송
2
3 (rpm) (mm/rev) (rpm) (mm/rev) (rpm) (mm/rev) (rpm) (mm/rev) (rpm) (mm/rev)
4
5 8,000 0.03-0.05 7,000 0.03-0.05 3,200 0.03-0.05 11,500 0.04-0.06 20,000 0.06-0.09
6 4,000 0.06-0.09 3,500 0.06-0.09 1,600 0.06-0.09 5,700 0.08-0.11 10,000 0.12-0.18
8 2,800 0.10-0.13 2,400 0.10-0.13 1,060 0.10-0.13 3,850 0.11-0.16 10,000 0.20-0.28
10 2,100 0.11-0.15 1,800 0.11-0.15 0.11-0.15 2,900 0.13-0.19 7,500 0.24-0.34
12 1,600 0.12-0.18 1,400 0.12-0.18 800 0.12-0.18 2,260 0.16-0.22 6,300 0.28-0.40
13 1,320 0.13-0.19 1,180 0.13-0.19 630 0.13-0.19 1,900 0.19-0.26 5,000 0.34-0.48
14 1,000 0.17-0.24 0.17-0.24 530 0.17-0.24 1,400 0.21-0.30 4,000 0.38-0.53
16 0.20-0.28 900 0.20-0.28 400 0.20-0.28 1,120 0.25-0.36 3,150 0.45-0.63
18 800 0.24-0.34 710 0.24-0.34 320 0.24-0.34 0.30-0.42 2,650 0.53-0.75
20 670 0.26-0.36 600 0.26-0.36 270 0.26-0.36 950 0.33-0.44 2,400 0.56-0.79
22 610 0.28-0.39 540 0.28-0.39 240 0.28-0.39 880 0.31-0.42 2,250 0.57-0.81
24 570 0.30-0.43 500 0.30-0.43 230 0.30-0.43 820 0.34-0.46 1,950 0.61-0.85
26 500 0.34-0.49 440 0.34-0.49 200 0.34-0.49 720 0.36-0.50 1,750 0.63-0.90
28 440 0.36-0.50 390 0.36-0.50 180 0.36-0.50 640 0.40-0.56 1,550 0.68-0.98
30 400 0.40-0.55 350 0.40-0.55 160 0.40-0.55 570 0.42-0.59 1,400 0.73-1,06
32 360 0.41-0.60 320 0.41-0.60 150 0.41-0.60 520 0.46-0.65 1,300 0.77-1.13
330 0.42-0.65 290 0.42-0.65 135 0.42-0.65 480 0.47-0.68 1,200 0.81-1.20
310 0.45-0.70 270 0.45-0.70 120 0.45-0.70 440 0.50-0.73 1,100 0.84-1.26
290 0.48-0.75 250 0.48-0.75 110 0.48-0.75 410 0.54-0.78 1,000 0.87-1.32
270 0.51-0.80 230 0.51-0.80 105 0.51-0.80 380 0.58-0.83 0.90-1.38
250 220 100 360 950
