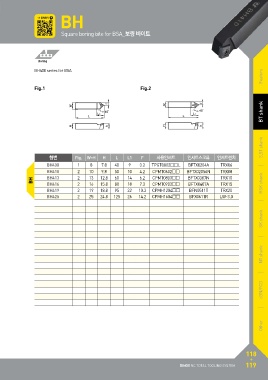

Square boring bite for BSA_보링 바이트

Boring Feature

BH400 series for BSA Fig.2

Fig.1

BBTTsshaannkk

형번 Fig. W=H H L L1 F 사용인서트 인서트스크류 인서트렌치 S,ST shank

BH408 1 8 7.8 40 9 3.2 TPGT0802□□L BFTX0204A TRX06
BH410
BH413 2 10 9.8 50 10 4.2 CPMT0602□□ BFTX02056N TRX08 HSK shank
BH416
BH BH419 2 13 12.8 60 14 6.2 CPMT0803□□ BFTX0307N TRX10
BH425
2 16 15.8 80 18 7.3 CPMT0903□□ BFTX0407A TRX15

2 19 18.8 95 22 10.3 CPMH1204□□ BFN0511T TRX20

2 25 24.8 125 26 14.2 CPMH1604□□ BFX0611R LW-3.0
