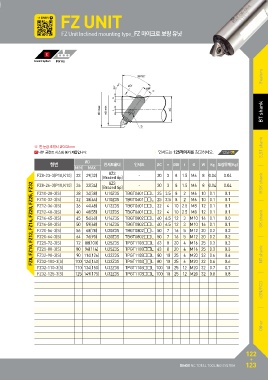

FZ UNIT

FZ Unit Inclined mounting type_FZ 마이크로 보링 유닛

Coolant System Boring

Feature

BBTTsshaannkk

※ 한 눈금 조정시 Ø0.02mm • 인서트는 125페이지를 참고하세요. 125P S,ST shank
내부 쿨런트 시스템 불가 제품입니다.

형번 ØD 인서트홀더 인서트 ØC n ØDf t G W Kg 포장무게(Kg)
MIN MAX

FZ8-23-3(P10,K10) 23 29(32) 8Z3 - 20 3 8 1.5 M6 8 0.04 0.04 HSK shank
(Brazed tip)

FZ8, FZ10, FZ12, FZ16, FZ20, FZ25, FZ32 FZ8-26-3(P10,K10) 26 32(34) 8Z3 - 20 3 8 1.5 M6 8 0.04 0.04
(Brazed tip)

FZ10-28-3(S) 28 34(38) U10Z3S TBGT0601□□L 25 3.5 8 2 M6 10 0.1 0.1

FZ10-32-3(S) 32 38(44) U10Z3S TBGT0601□□L 25 3.5 8 2 M6 10 0.1 0.1

FZ12-36-3(S) 36 44(48) U12Z3S TBGT0601□□L 32 4 10 2.5 M8 12 0.1 0.1

FZ12-40-3(S) 40 48(55) U12Z3S TBGT0601□□L 32 4 10 2.5 M8 12 0.1 0.1 SK shank

FZ16-45-3(S) 45 54(60) U16Z3S TBGT0802□□L 40 6.5 12 3 M10 16 0.1 0.0

FZ16-50-3(S) 50 59(68) U16Z3S TBGT0802□□L 40 6.5 12 3 M10 16 0.1 0.1

FZ20-56-3(S) 56 68(78) U20Z3S TBGT0802□□L 50 7 16 5 M12 20 0.2 0.2

FZ20-64-3(S) 64 76(90) U20Z3S TBGT0802□□L 50 7 16 5 M12 20 0.2 0.2

FZ25-72-3(S) 72 88(100) U25Z3S TPGT1103□□L 63 8 20 4 M16 25 0.3 0.3 NT shank

FZ25-80-3(S) 80 96(114) U25Z3S TPGT1103□□L 63 8 20 4 M16 25 0.3 0.3

FZ32-90-3(S) 90 114(126) U32Z3S TPGT1103□□L 80 10 25 6 M20 32 0.6 0.6

FZ32-100-3(S) 100 124(140) U32Z3S TPGT1103□□L 80 10 25 6 M20 32 0.6 0.6

FZ32-110-3(S) 110 134(150) U32Z3S TPGT1103□□L 100 10 25 12 M20 32 0.7 0.7

FZ32-125-3(S) 125 149(175) U32Z3S TPGT1103□□L 100 10 25 12 M20 32 0.8 0.8

cBN/PCD

Other
