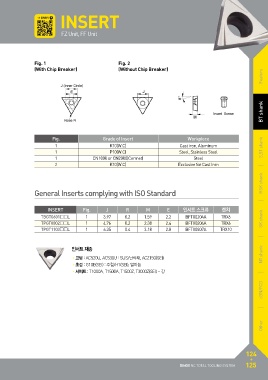

INSERT

FZ Unit, FF Unit

Fig. 1 Fig. 2 Feature
(With Chip Breaker) (Without Chip Breaker)

BBTTsshaannkk

Fig. Grade of Insert Workpiece S,ST shank

1 K10(W.C) Cast iron, Aluminum
1 P10(W.C) Steel, Stainless Steel
1 CN1000 or CN2000(Cermet)
2 K10(W.C) Steel
Exclusive for Cast Iron

General Inserts complying with ISO Standard HSK shank

Insert Fig. J RM E 인서트 스크류 렌치 SK shank

TBGT0601□□L 1 3.97 0.2 1.59 2.2 BFTX0204A TRX6

TPGT0802□□L 1 4.76 0.2 2.38 2.4 BFTX0204A TRX6

TPGT1103□□L 1 6.35 0.4 3.18 2.8 BFTX0307A TRX10

인서트 재종 NT shank

•코팅 : AC520U, AC530U : SUS/난삭재, ACZ150(SEI)
•초경 : G10E(SEI) : 주철/H1(SEI), 알미늄
•서메트 : T1000A, T1500A, T1500Z, T3000Z(SEI) - 강

cBN/PCD
