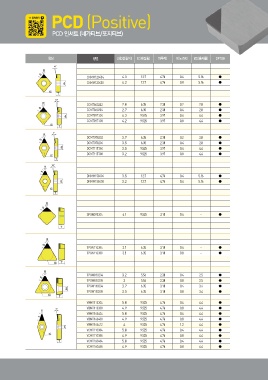

PCD (Positive)

PCD 인서트 (네가티브/포지티브)

형상 형번 S(인선길이) IC(내접원) T(두께) R(노즈R) ØD(홀지름) DP150

10° CNMM120404 4.3 12.7 4.76 0.4 5.16 ●
CNMM120408 4.2 12.7 4.76 0.8 5.16 ●
10°
CCMT060202 2.8 6.35 2.38 0.2 2.8 ●
7° CCMT060204
CCMT09T304 2.7 6.35 2.38 0.4 2.8 ●
CCMT09T308
4.3 9.525 3.97 0.4 4.4 ●
DCMT070202
DCMT070204 4.2 9.525 3.97 0.8 4.4 ●
DCMT11T304
DCMT11T308 3.7 6.35 2.38 0.2 2.8 ●

3.5 6.35 2.38 0.4 2.8 ●

3.5 9.525 3.97 0.4 4.4 ●

3.2 9.525 3.97 0.8 4.4 ●

DNMM150404 3.5 12.7 4.76 0.4 5.16 ●
DNMM150408 3.2 12.7 4.76 0.4 5.16 ●

SPGN090304 4.1 9.525 3.18 0.4 - ●

TPGN110304 3.7 6.35 3.18 0.4 - ●
TPGN110308 3.5 6.35 3.18 0.8 - ●

TPGW090204 3.2 5.56 2.38 0.4 2.5 ●
TPGW090208
TPGW110304 3 5.56 2.38 0.8 2.5 ●
TPGW110308
3.7 6.35 3.18 0.4 3.4 ●
VBMT110304
VBMT110308 3.5 6.35 3.18 0.8 3.4 ●
VBMT160404
VBMT160408 5.8 9.525 4.76 0.4 4.4 ●
VBMT160412
VCMT110304 4.9 9.525 4.76 0.8 4.4 ●
VCMT110308
VCMT160404 5.8 9.525 4.76 0.4 4.4 ●
VCMT160408
4.9 9.525 4.76 0.8 4.4 ●

4 9.525 4.76 1.2 4.4 ●

5.8 9.525 4.76 0.4 4.4 ●

4.9 9.525 4.76 0.8 4.4 ●

5.8 9.525 4.76 0.4 4.4 ●

4.9 9.525 4.76 0.8 4.4 ●
