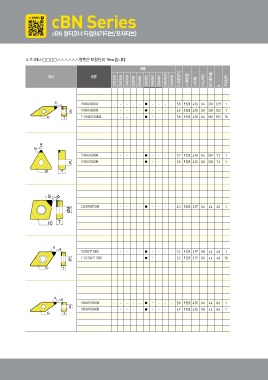

cBN Series

cBN 멀티코너 타입(네가티브/포지티브)

※ T-2NU-□□□□△△△△△△형번은 포장단위 10ea 입니다. 재종

형상 형번
DNC250
DNC350
DNC400
DB1000
DB2000
DBN250
DBN300
DBN400
DBN700A
DBNX20
S (인선길이)
IC (내접원)
T (두께)
R (노즈R)
ØD (홀지름)
g
포장단위

VNMA160404 - - - - - ● - - - - 5.8 9.525 4.76 0.4 3.81 12.9 1
VNMA160408 - - - - - ● - - - - 4.9 9.525 4.76 0.8 3.81 10.2 1
T-VNMA160404 - - - - - ● - - - - 5.8 9.525 4.76 0.4 3.81 10.2 10

TNMA160404 - - - - - ● - - - - 3.7 9.525 4.76 0.4 3.81 7.2 1
TNMA160408 - - - - - ● - - - - 3.5 9.525 4.76 0.8 3.81 7.2 1

CCMW09T304 - - - - - ● - - - - 4.3 9.525 3.97 0.4 4.4 4.5 1

D DCGW11T308 - - - - - ● - - - - 3.2 9.525 3.97 0.8 4.4 4.8 1
T-DCGW11T308 - - - - - ● - - - - 3.2 9.525 3.97 0.8 4.4 4.8 10

VBMW160404 - - - - - ● - - - - 5.8 9.525 4.76 0.4 4.4 8.6 1
VBMW160408 - - - - - ● - - - - 4.9 9.525 4.76 0.8 4.4 8.6 1
