P. 200

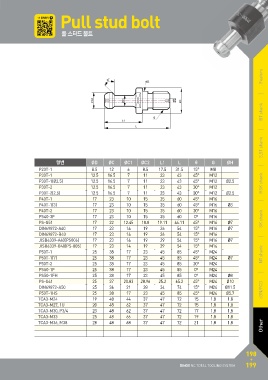

Pull stud bolt
풀 스터드 볼트
Feature
BT shank
S,ST shank
형번 ØD ØC ØC1 ØC2 L1 L θ G ØH
P20T-1 8.5 12 6 8.5 17.5 31.5 15° M8
P30T-1 12.5 16.5 7 11 23 43 45° M12 HSK shank
P30T-1(Ø2.5) 12.5 16.5 7 11 23 43 45° M12 Ø2.5
P30T-2 12.5 16.5 7 11 23 43 30° M12
P30T-2(2.5) 12.5 16.5 7 11 23 43 30° M12 Ø2.5
P40T-1 17 23 10 15 35 60 45° M16
P40T-1(3) 17 23 10 15 35 60 45° M16 Ø3
P40T-2 17 23 10 15 35 60 30° M16 SK shank
PS40-3F 17 23 10 15 35 60 0° M16
PS-G51 17 22 12.45 18.8 19.11 44.11 45° M16 Ø7
DIN69872-A40 17 23 14 19 26 54 15° M16 Ø7
DIN69872-B40 17 23 14 19 26 54 15° M16
JISB6339-A40(PS806) 17 23 14 19 29 54 15° M16 Ø7
JISB6339-B40(PS-805) 17 23 14 19 29 54 15° M16 NT shank
P50T-1 25 38 17 23 45 85 45° M24
P50T-1(7) 25 38 17 23 45 85 45° M24 Ø7
P50T-2 25 38 17 23 45 85 30° M24
PS50-1F 25 38 17 23 45 85 0° M24
PS50-1FH 25 38 17 23 45 85 0° M24 Ø8
PS-G41 25 37 20.83 28.96 25.2 65.2 45° M24 Ø10 cBN/PCD
DIN69872-A50 25 36 21 28 34 74 15° M24 Ø11.5
P50T-1HS 25 38 17 23 45 85 45° M24 Ø5.7
TCA3-M24 19 48 44 37 47 72 15 1.8 1.8
TCA3-M27, 1U 20 48 62 37 47 72 15 1.8 1.8
TCA3-M30, P3/4 23 48 62 37 47 72 17 1.8 1.8
TCA3-M33 25 48 66 37 47 72 19 1.8 1.8 OOttheerr
TCA3-M36, M38 28 48 68 37 47 72 21 1.8 1.8
