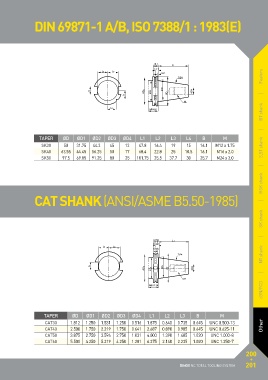

DIN 69871-1 A/B, ISO 7388/1 : 1983(E)
Feature
44 BT shank
44
TAPER ØD ØD1 ØD2 ØD3 ØD4 L1 L2 L3 L4 B M S,ST shank
SK30 50 31.75 44.3 45 13 47.8 16.4 19 15 16.1 M12 x 1.75
SK40 63.55 44.45 56.25 50 17 68.4 22.8 25 18.5 16.1 M16 x 2.0
SK50 97.5 69.85 91.25 80 25 101.75 35.5 37.7 30 25.7 M24 x 3.0
CAT SHANK (ANSI/ASME B5.50-1985) HSK shank
SK shank
NT shank
cBN/PCD
TAPER ØD ØD1 ØD2 ØD3 ØD4 L1 L2 L3 B M OOttheerr
CAT30 1.812 1.250 1.531 1.250 0.516 1.875 0.640 0.735 0.645 UNC 0.500-13
CAT40 2.500 1.750 2.219 1.750 0.641 2.687 0.890 0.985 0.645 UNC 0.625-11
CAT50 3.875 2.750 3.594 2.750 1.031 4.000 1.390 1.485 1.020 UNC 1.000-8
CAT60 5.500 4.250 5.219 4.250 1.281 6.375 2.140 2.235 1.020 UNC 1.250-7
