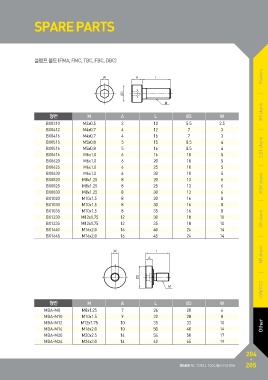

SPARE PARTS

클램프 볼트 (FMA, FMC, TBC, FBC, DBC)

Feature

형번 M A L ØD W BT shank

BX0310 M3x0.5 3 10 5.5 2.5

BX0412 M4x0.7 4 12 7 3

BX0416 M4x0.7 4 16 7 3 S,ST shank

BX0515 M5x0.8 5 15 8.5 4

BX0516 M5x0.8 5 16 8.5 4

BX0616 M6x1.0 6 16 10 5

BX0620 M6x1.0 6 20 10 5

BX0625 M6x1.0 6 25 10 5

BX0630 M6x1.0 6 30 10 5 HSK shank

BX0820 M8x1.25 8 20 13 6

BX0825 M8x1.25 8 25 13 6

BX0830 M8x1.25 8 30 13 6

BX1020 M10x1.5 8 20 16 8

BX1030 M10x1.5 8 30 16 8

BX1035 M10x1.5 8 35 16 8 SK shank

BX1230 M12x1.75 12 30 18 10

BX1235 M12x1.75 12 35 18 10

BX1640 M16x2.0 16 40 24 14

BX1645 M16x2.0 16 45 24 14

NT shank

cBN/PCD

형번 M A L ØD W

MBA-M8 M8x1.25 7 26 20 6
MBA-M10 M10x1.5 9
MBA-M12 M12x1.75 10 32 28 8 OOttheerr
MBA-M16 M16x2.0 10
MBA-M20 M20x2.5 14 35 33 10
MBA-M24 M24x3.0 14
50 40 14

54 50 17

62 65 19
