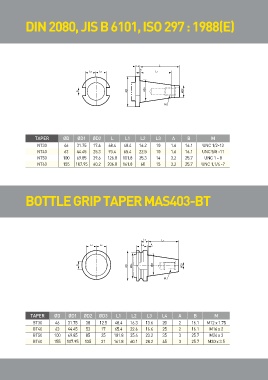

DIN 2080, JIS B 6101, ISO 297 : 1988(E)

TAPER ØD ØD1 ØD2 L L1 L2 L3 A 32 B M
32
NT30 46 31.75 17.4 68.4 48.4 16.2 10 1.6 16.1 UNC 1/2-13
NT40
NT50 63 44.45 25.3 93.4 65.4 22.5 10 1.6 16.1 UNC 5/8 -11
NT60
100 69.85 39.6 126.8 101.8 35.3 14 3.2 25.7 UNC 1 - 8

155 107.95 60.2 206.8 161.8 60 15 3.2 25.7 UNC 1,1/4 -7

BOTTLE GRIP TAPER MAS403-BT

TAPER ØD ØD1 ØD2 ØD3 L1 L2 L3 L4 AB M

BT30 46 31.75 38 12.5 48.4 16.3 13.6 20 2 16.1 M12 x 1.75
BT40 63 44.45 53 17 65.4 22.6 16.6 25
BT50 100 69.85 85 25 101.8 35.4 23.2 35 2 16.1 M16 x 2
BT60 155 107.95 135 31 161.8 60.1 28.2 45
3 25.7 M24 x 3

3 25.7 M30 x 3.5
