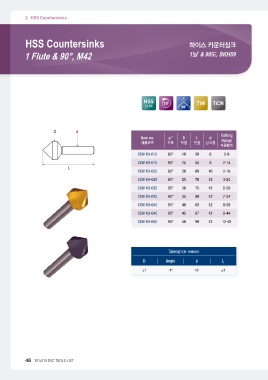

P. 50
HSS Countersinks 하이스 카운터싱크
1날 & 90도, SKH59
HSS Countersinks
1 Flute & 90°, M42
HSS 1F TiN TiCN
Co 8% 90°
Item no. α° D L d Cutting
Range
제품코드 각도 직경 전장 샹크경
가공범위
CS01H9-010
CS01H9-015 90° 10 50 6 2-9
CS01H9-020
CS01H9-025 90° 15 55 8 2-14
CS01H9-030
CS01H9-035 90° 20 60 10 2-19
CS01H9-040
CS01H9-045 90° 25 70 12 3-24
CS01H9-050
90° 30 75 12 6-29
90° 35 80 12 7-34
90° 40 85 12 8-39
90° 45 87 12 9-44
90° 50 90 12 12-49
Tolerance (허용공차) L
D Angle d ±1
±1 -1° h9
48 2014/15 DYC TOOLS LIST
