P. 55

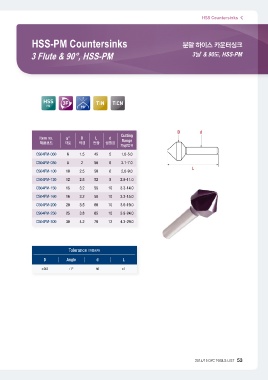

HSS-PM Countersinks HSS Countersinks
3 Flute & 90°, HSS-PM 분말 하이스 카운터싱크
3날 & 90도, HSS-PM
HSS 3F TiN TiCN
PM
90°
Item no. α° D L d Cutting
Range
제품코드 각도 직경 전장 샹크경
가공범위
CS04PM-060 6 1.5 45 5 1.6-5.0
CS04PM-080 8 2 50 6 2.1-7.0
CS04PM-100 10 2.5 50 6 2.6-9.0
CS04PM-120 12 2.8 52 8 2.9-11.0
CS04PM-150 15 3.2 55 10 3.3-14.0
CS04PM-160 16 3.2 58 10 3.3-15.0
CS04PM-200 20 3.5 60 10 3.6-19.0
CS04PM-250 25 3.8 65 10 3.9-24.0
CS04PM-300 30 4.2 70 12 4.3-29.0
Tolerance (허용공차)
D Angle d L
±0.5 -1° h6 ±1
2014/15 DYC TOOLS LIST 53
