HSS Countersinks

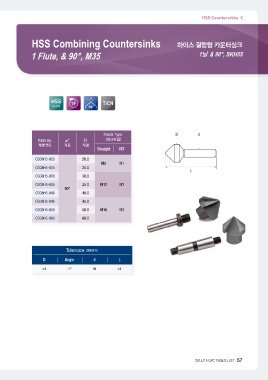

HSS Combining Countersinks 하이스 결합형 카운터싱크
1날 & 90°, SKH55
1 Flute, & 90°, M35
HSS 1F TiCN
Co 5% 90°
Item no. α° Shank Type
제품코드 각도 D (샹크타입)
직경 Straight MT
CS08H5-020 90° 20.0 M1
CS08H5-025 M8 M2
CS08H5-030 M3
CS08H5-035 25.0
CS08H5-040 30.0
CS08H5-045 35.0 M12
CS08H5-050 40.0
CS08H5-060 45.0
50.0 M16
60.0
Tolerance (허용공차) L
D Angle d ±1
±1 -1° h9
2014/15 DYC TOOLS LIST 57
