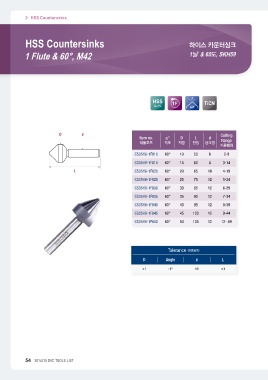

HSS Countersinks 하이스 카운터싱크
1날 & 60도, SKH59
HSS Countersinks

1 Flute & 60°, M42

HSS 1F TiCN

Co 8% 60°

Item no. α° D L d Cutting
Range
제품코드 각도 직경 전장 샹크경
가공범위

CS05H9-1F010 60° 10 50 6 3-9

CS05H9-1F015 60° 15 60 8 3-14

CS05H9-1F020 60° 20 65 10 4-19

CS05H9-1F025 60° 25 75 12 5-24

CS05H9-1F030 60° 30 85 12 6-29

CS05H9-1F035 60° 35 90 12 7-34

CS05H9-1F040 60° 40 95 12 8-39

CS05H9-1F045 60° 45 100 12 9-44

CS05H9-1F050 60° 50 105 12 12- 49

Tolerance (허용공차) L

D Angle d ±1

±1 -1° h9

54 2014/15 DYC TOOLS LIST
