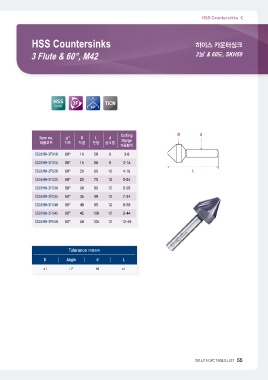

HSS Countersinks HSS Countersinks

3 Flute & 60°, M42 하이스 카운터싱크
3날 & 60도, SKH59

HSS 3F TiCN

Co 8% 60°

Item no. α° D L d Cutting
Range
제품코드 각도 직경 전장 샹크경
가공범위

CS06H9-3F010 60° 10 50 6 3-9

CS06H9-3F015 60° 15 60 8 3-14

CS06H9-3F020 60° 20 65 10 4-19

CS06H9-3F025 60° 25 75 12 5-24

CS06H9-3F030 60° 30 85 12 6-29

CS06H9-3F035 60° 35 90 12 7-34

CS06H9-3F040 60° 40 95 12 8-39

CS06H9-3F045 60° 45 100 12 9-44

CS06H9-3F050 60° 50 105 12 12-49

Tolerance (허용공차) L

D Angle d ±1

±1 -1° h9
