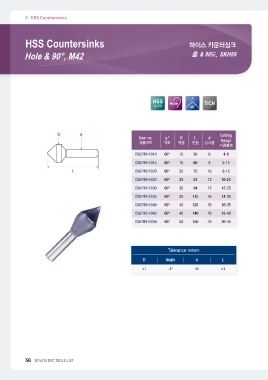

P. 58

HSS Countersinks                                   하이스 카운터싱크
                                                        홀 & 90도, SKH59
HSS Countersinks

Hole & 90°, M42

                                     HSS     Hole             TiCN

                                      Co 8%            60°

                           Item no.          α°     D   L     d     Cutting
                                                                    Range
                           제품코드              각도    직경  전장   샹크경
                                                                    가공범위

                           CS07H9-H010 60° 10          50   6       4-8

                           CS07H9-H015 60° 15          60   8       5-12

                           CS07H9-H020 60° 20 75 10                 8-15

                           CS07H9-H025 60° 25 85 12 10-20

                           CS07H9-H030 60° 30 94 12 12-25

                           CS07H9-H035 60° 35 115 16                14-30

                           CS07H9-H040 60° 40 125 16                16-35

                           CS07H9-H045 60° 45 140 16                18-40

                           CS07H9-H050 60° 50 150 16                20-45

                                          Tolerance (허용공차)          L

                           D Angle d                                ±1

                           ±1 -1° h9

56 2014/15 DYC TOOLS LIST
