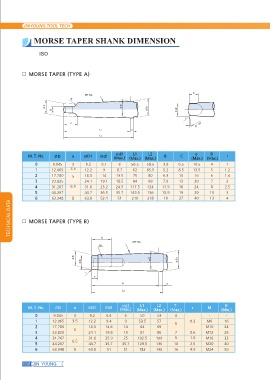

MORSE TAPER SHANK DIMENSION

ISO

MORSE TAPER (TYPE A)

M. T. No. D a D1 d1 d2 L1 L2 B C eR r
3 (Max.) (Max.) (Max.) (Max.) (Max.)
0 9.045 3.5 9.2 6.1 3.9
1 12.065 5 12.2 9 6 56.5 59.5 5.2 6.5 10.5 4 1
2 17.780 18.0 14 8.7 62 65.5 6.3
3 23.825 6.5 24.1 19.1 13.5 75 80 7.9 8.5 13.5 5 1.2
4 31.267 31.6 25.2 18.5 94 99 11.9
5 44.267 8 44.7 36.5 24.5 117.5 124 15.9 10 16 6 1.6
6 63.348 63.8 52.4 35.7 149.5 156 19
51 210 218 13 20 7 2

16 24 8 2.5

19 29 10 3

TECHNICAL DATA 27 40 13 4

MORSE TAPER (TYPE B)

M. T. No. D a D1 d1 d2 L1 L2 T r M K
3 (Max.) (Max.) (Max.) (Max.) (Min.)
0 9.045 3.5 9.2 6.4 0.2 -
1 12.065 5 12.2 9.4 6 50 53 4 M6 -
2 17.780 18.0 14.6 9 53.5 57 0.6 M10 16
3 23.825 6.5 24.1 19.8 14 64 69 5 1.0 M12 24
4 31.267 8 31.6 25.9 19 81 86 2.5 M16 28
5 44.267 44.7 35.7 25 102.5 109 7 4.0 M20 32
6 63.348 63.8 51 35.7 129.5 136 9 M24 40
51 182 190 10 50
16
