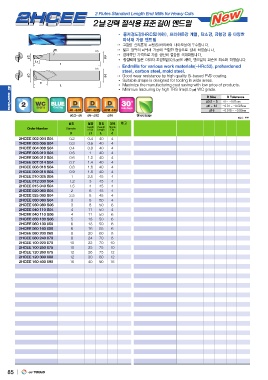

2 Flutes Standard Length End Mills for Heavy Cuts

2

E series Endmills for various work materials(~HRc52), prehardened
steel , carbon steel, mold steel.
Good wear resistance by high quality Si-based PVD coating.
Suitable shape is designed for tooling in wide areas.
Maximize the manufacturing cost saving with low price of products.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

0 0.01 0.01 0.025 0.015 0.03 D Size D Tolerance
0.2~ 5 0.2 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm
-0.015 ~ -0.03mm
16

6~ 12 16 Shield Edge mm

Order Number Diameter Length Overall Shank
of cut Length Dia
2HCEE 002 004 S04 D L1 L d
2HCEE 003 006 S04
2HCEE 004 008 S04 0.2 0.4 40 4
2HCEE 005 010 S04 0.3 0.6 40 4
2HCEE 006 012 S04 0.4 0.8 40 4
2HCEE 007 014 S04 0.5 1 40 4
2HCEE 008 016 S04 0.6 1.2 40 4
2HCEE 009 018 S04 0.7 1.4 40 4
2HCEE 010 025 S04 0.8 1.6 40 4
2HCEE 012 030 S04 0.9 1.8 40 4
2HCEE 015 040 S04 1 2.5 45 4
2HCEE 020 060 S04 1.2 3 45 4
2HCEE 025 080 S04 1.5 4 45 4
2HCEE 030 080 S04 2 6 45 4
2HCEE 030 080 S06 2.5 8 45 4
2HCEE 040 110 S04 3 8 50 4
2HCEE 040 110 S06 3 8 50 6
2HCEE 050 130 S06 4 11 50 4
2HCEE 060 130 050 4 11 50 6
2HCEE 060 160 055 5 13 50 6
2HCEE 080 200 060 6 13 50 6
2HCEE 080 240 070 6 16 55 6
2HCEE 100 220 070 8 20 60 8
2HCEE 100 250 075 8 24 70 8
2HCEE 120 260 075 10 22 70 10
2HCEE 120 300 080 10 25 75 10
2HCEE 160 400 090 12 26 75 12
12 30 80 12
16 40 90 16

85 JJ TOOLS
