P. 105

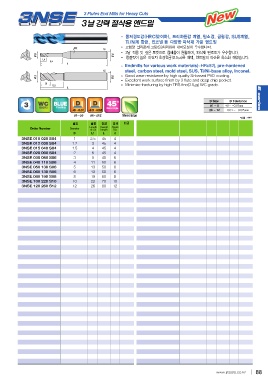

3 Flutes End Mills for Heavy Cuts
3
Endmills for various work materials(~HRc52), pre-hardened E series
steel , carbon steel, mold steel, SUS, Ti/Ni-base alloy, Inconel.
Good wear resistance by high quality Si-based PVD coating.
Excellent work surface finish by 3 flute and deep chip pocket.
Minimize fracturing by high TRS fine(0.5 ) WC grade.
0 0.01 0.01 0.025 D Size D Tolerance
1~5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm
1~ 5 6~ 12 Shield Edge mm
Order Number Diameter Length Overall Shank
of cut Length Dia
3NSE 010 025 S04 D L1 L d
3NSE 012 030 S04
3NSE 015 040 S04 1 2.5 45 4
3NSE 020 060 S04 1.2 3 45 4
3NSE 030 080 S06 1.5 4 45 4
3NSE 040 110 S06 2 6 45 4
3NSE 050 130 S06 3 8 45 6
3NSE 060 130 S06 4 11 50 6
3NSE 080 190 S08 5 13 50 6
3NSE 100 220 S10 6 13 55 6
3NSE 120 260 S12 8 19 60 8
10 22 70 10
12 26 80 12
www.jjtools.co.kr 88
