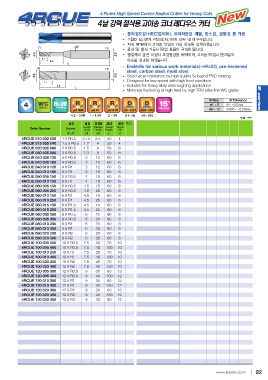

4 Flutes High Speed Corner Radius Cutter for Heavy Cuts

4

Endmills for various work materials(~HRc52), pre-hardened E series
steel , carbon steel, mold steel.
Good wear resistance by high quality Si-based PVD coating.
Designed for low speed with high feed condition.
Suitable for heavy duty and roughing application.
Minimize fracturing at high feed by high TRS ultra fine WC grade.

0.005 0.01 0.015 0 0.01 0.005 0.015 D Size D Tolerance
2 ~ 3R 1~5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm

0.2 ~ 0.5R 1 ~ 1.5R 1~ 5 6~ 12 mm

Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia
4RCUE 010 002 025 DR L1 L2 L d
4RCUE 015 005 040
4RCUE 020 005 060 1 X R0.2 0.75 2.5 50 4
4RCUE 030 005 080 1.5 X R0.5 1.2 4 50 4
4RCUE 040 005 120 2 X R0.5 1.5 6 50 6
4RCUE 040 005 160 3 X R0.5 2.3 8 50 6
4RCUE 040 010 120 4 X R0.5 3 12 60 6
4RCUE 040 010 160 4 X R0.5 3 16 60 6
4RCUE 050 005 150 4 X R1 3 12 60 6
4RCUE 050 010 150 4 X R1 3 16 60 6
4RCUE 060 005 150 5 X R0.5 4 15 60 6
4RCUE 060 005 250 5 X R1 4 15 60 6
4RCUE 060 010 150 6 X R0.5 4.5 15 60 6
4RCUE 060 010 250 6 X R0.5 4.5 25 80 6
4RCUE 060 015 150 6 X R1 4.5 15 60 6
4RCUE 060 015 250 6 X R1 4.5 25 80 6
4RCUE 080 005 200 6 X R1.5 4.5 15 60 6
4RCUE 080 005 300 6 X R1.5 4.5 25 80 6
4RCUE 080 010 200 8 X R0.5 6 20 60 8
4RCUE 080 010 300 8 X R0.5 6 30 90 8
4RCUE 080 020 200 8 X R1 6 20 60 8
4RCUE 080 020 300 8 X R1 6 30 90 8
4RCUE 100 005 250 8 X R2 6 20 60 8
4RCUE 100 005 400 8 X R2 6 30 90 8
4RCUE 100 010 250 10 X R0.5 7.5 25 70 10
4RCUE 100 010 400 10 X R0.5 7.5 40 100 10
4RCUE 100 020 250 10 X R1 7.5 25 70 10
4RCUE 100 020 400 10 X R1 7.5 40 100 10
4RCUE 120 005 300 10 X R2 7.5 25 70 10
4RCUE 120 005 400 10 X R2 7.5 40 100 10
4RCUE 120 010 300 12 X R0.5 9 30 80 12
4RCUE 120 010 400 12 X R0.5 9 40 100 12
4RCUE 120 020 300 12 X R1 9 30 80 12
4RCUE 120 020 400 12 X R1 9 40 100 12
4RCUE 120 030 300 12 X R2 9 30 80 12
12 X R2 9 40 100 12
12 X R3 9 30 80 12
