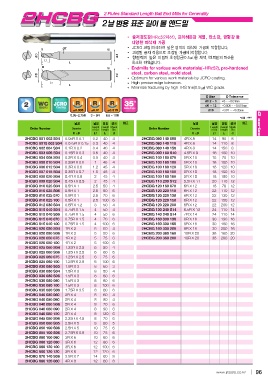

2 Flutes Standard Length Ball End Mills for Generality

2

Endmills for various work materials(~HRc52), pre-hardened
steel , carbon steel, mold steel.
Optimum for various work materials by JCRO coating.
High precise edge tolerance.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

0.005 0.01 0.015 D Size D Tolerance G series
6.5 ~ 10R 0.2 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm
-0.01 ~ -0.02mm
16

0.05~2.75R 3 ~ 6R mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
RD of cut Length Dia of cut Length Dia
2HCBG 080 140 090 RD L1 L d
L1 L d 2HCBG 080 140 110
2HCBG 080 140 150 4R X 8 14 90 8
2HCBG 001 002 S04 0.05R X 0.1 0.2 40 4 2HCBG 090 160 S10 4R X 8 14 110 8
2HCBG 100 150 070 4R X 8 14 150 8
2HCBG 0015 003 S04 0.075R X 0.15 0.3 40 4 2HCBG 100 180 100 4.5R X 9 16 100 10
2HCBG 100 180 120 5R X 10 15 70 10
2HCBG 002 004 S04 0.1R X 0.2 0.4 40 4 2HCBG 100 180 150 5R X 10 18 100 10
2HCBG 100 180 180 5R X 10 18 120 10
2HCBG 003 006 S04 0.15R X 0.3 0.6 40 4 2HCBG 110 200 S12 5R X 10 18 150 10
2HCBG 120 180 070 5R X 10 18 180 10
2HCBG 004 008 S04 0.2R X 0.4 0.8 40 4 2HCBG 120 220 110 5.5R X 11 20 110 12
2HCBG 120 220 130 6R X 12 18 70 12
2HCBG 005 010 S04 0.25R X 0.5 1 45 4 2HCBG 120 220 150 6R X 12 22 110 12
2HCBG 120 220 200 6R X 12 22 130 12
2HCBG 006 012 S04 0.3R X 0.6 1.2 45 4 2HCBG 130 240 S14 6R X 12 22 150 12
2HCBG 140 240 S14 6R X 12 22 200 12
2HCBG 007 015 S04 0.35R X 0.7 1.5 45 4 2HCBG 160 300 130 6.5R X 13 24 110 14
2HCBG 160 300 160 7R X 14 24 110 14
2HCBG 008 020 S04 0.4R X 0.8 2 45 4 2HCBG 160 300 200 8R X 16 30 130 16
2HCBG 200 380 160 8R X 16 30 160 16
2HCBG 009 020 S04 0.45R X 0.9 2 45 4 2HCBG 200 380 200 8R X 16 30 200 16
10R X 20 38 160 20
2HCBG 010 025 S04 0.5R X 1 2.5 50 4 10R X 20 38 200 20

2HCBG 010 025 S06 0.5R X 1 2.5 50 6

2HCBG 010 025 070 0.5R X 1 2.5 70 6

2HCBG 010 025 100 0.5R X 1 2.5 100 6

2HCBG 012 030 S04 0.6R X 1.2 3 50 4

2HCBG 015 040 S04 0.75R X 1.5 4 50 4

2HCBG 015 040 S06 0.75R X 1.5 4 50 6

2HCBG 015 040 070 0.75R X 1.5 4 70 6

2HCBG 015 040 100 0.75R X 1.5 4 100 6

2HCBG 020 050 S04 1R X 2 5 50 4

2HCBG 020 050 S06 1R X 2 5 50 6

2HCBG 020 050 075 1R X 2 5 75 6

2HCBG 020 050 100 1R X 2 5 100 6

2HCBG 025 060 S04 1.25R X 2.5 6 50 4

2HCBG 025 060 S06 1.25R X 2.5 6 60 6

2HCBG 025 060 075 1.25R X 2.5 6 75 6

2HCBG 025 060 100 1.25R X 2.5 6 100 6

2HCBG 030 080 S03 1.5R X 3 8 60 3

2HCBG 030 080 S04 1.5R X 3 8 50 4

2HCBG 030 080 S06 1.5R X 3 8 60 6

2HCBG 030 080 080 1.5R X 3 8 80 6

2HCBG 030 080 100 1.5R X 3 8 100 6

2HCBG 035 080 S06 1.75R X 3.5 8 60 6

2HCBG 040 080 060 2R X 4 8 60 4

2HCBG 040 080 080 2R X 4 8 80 4

2HCBG 040 080 S06 2R X 4 8 70 6

2HCBG 040 080 090 2R X 4 8 90 6

2HCBG 040 080 120 2R X 4 8 120 6

2HCBG 045 080 S06 2.25R X 4.5 8 70 6

2HCBG 050 080 S05 2.5R X 5 8 80 5

2HCBG 050 100 S06 2.5R X 5 10 75 6

2HCBG 055 100 S06 2.75R X 5.5 10 75 6

2HCBG 060 100 060 3R X 6 10 60 6

2HCBG 060 120 080 3R X 6 12 80 6

2HCBG 060 120 100 3R X 6 12 100 6

2HCBG 060 120 120 3R X 6 12 120 6

2HCBG 070 140 S08 3.5R X 7 14 80 8

2HCBG 080 120 060 4R X 8 12 60 8

www.jjtools.co.kr 96
