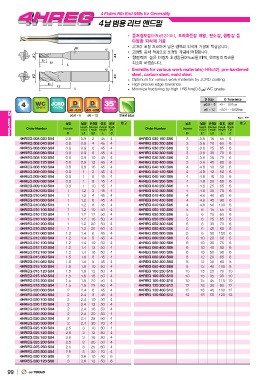

4 Flutes Rib End Mills for Generality

4

Endmills for various work materials(~HRc52), pre-hardened
steel , carbon steel, mold steel.
Optimum for various work materials by JCRO coating.
High precise edge tolerance.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

G series 0 0.01 0.01 0.025 D Size D Tolerance
0.8 ~ 5 6 ~ 12 0.8 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm

Shield Edge mm

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia of cut Length Length Dia
4HREG 008 020 S04 D L1 L2 L d 4HREG 030 160 S06 D L1 L2 L d
4HREG 008 040 S04 4HREG 030 200 S06
4HREG 008 060 S04 0.8 0.9 2 45 4 4HREG 030 250 S06 3 3.6 16 55 6
4HREG 008 080 S04 0.8 0.9 4 45 4 4HREG 030 300 S06 3 3.6 20 60 6
4HREG 008 100 S04 0.8 0.9 6 45 4 4HREG 030 350 S06 3 3.6 25 65 6
4HREG 008 120 S04 0.8 0.9 8 45 4 4HREG 030 400 S06 3 3.6 30 70 6
4HREG 008 160 S04 0.8 0.9 10 45 4 4HREG 040 100 S06 3 3.6 35 75 6
4HREG 009 020 S04 0.8 0.9 12 45 4 4HREG 040 120 S06 3 3.6 40 80 6
4HREG 009 060 S04 0.8 0.9 16 45 4 4HREG 040 160 S06 4 4.8 10 50 6
4HREG 009 080 S04 0.9 1 2 45 4 4HREG 040 200 S06 4 4.8 12 50 6
4HREG 009 100 S04 0.9 1 6 45 4 4HREG 040 250 S06 4 4.8 16 55 6
4HREG 010 030 S04 0.9 1 8 45 4 4HREG 040 300 S06 4 4.8 20 60 6
4HREG 010 040 S04 0.9 1 10 45 4 4HREG 040 400 S06 4 4.8 25 65 6
4HREG 010 060 S04 1 1.2 3 45 4 4HREG 040 450 S06 4 4.8 30 70 6
4HREG 010 080 S04 1 1.2 4 45 4 4HREG 040 500 S06 4 4.8 40 80 6
4HREG 010 100 S04 1 1.2 6 45 4 4HREG 050 150 S06 4 4.8 45 90 6
4HREG 010 120 S04 1 1.2 8 45 4 4HREG 050 200 S06 4 4.8 50 100 6
4HREG 010 160 S04 1 1.2 10 50 4 4HREG 050 250 S06 5 6 15 55 6
4HREG 010 200 S04 1 1.2 12 50 4 4HREG 050 300 S06 5 6 20 60 6
4HREG 010 250 S04 1 1.2 16 50 4 4HREG 050 400 S06 5 6 25 65 6
4HREG 012 060 S04 1 1.2 20 50 4 4HREG 050 500 S06 5 6 30 70 6
4HREG 012 080 S04 1 1.2 25 60 4 4HREG 060 200 S06 5 6 40 80 6
4HREG 012 100 S04 1.2 1.4 6 45 4 4HREG 060 300 S06 5 6 50 100 6
4HREG 012 120 S04 1.2 1.4 8 45 4 4HREG 060 400 S06 6 10 20 60 6
4HREG 012 160 S04 1.2 1.4 10 50 4 4HREG 060 500 S06 6 10 30 75 6
4HREG 015 060 S04 1.2 1.4 12 50 4 4HREG 080 200 S08 6 10 40 80 6
4HREG 015 080 S04 1.2 1.4 16 50 4 4HREG 080 300 S08 6 10 50 90 6
4HREG 015 100 S04 1.5 1.8 6 45 4 4HREG 080 400 S08 8 12 20 65 8
4HREG 015 120 S04 1.5 1.8 8 45 4 4HREG 100 250 S10 8 12 30 80 8
4HREG 015 160 S04 1.5 1.8 10 50 4 4HREG 100 350 S10 8 12 40 100 8
4HREG 015 200 S04 1.5 1.8 12 50 4 4HREG 100 450 S10 10 15 25 70 10
4HREG 015 250 S04 1.5 1.8 16 50 4 4HREG 120 300 S12 10 15 35 90 10
4HREG 020 060 S04 1.5 1.8 20 50 4 4HREG 120 400 S12 10 15 45 110 10
4HREG 020 080 S04 1.5 1.8 25 60 4 4HREG 120 500 S12 12 18 30 80 12
4HREG 020 100 S04 2 2.4 6 45 4 12 18 40 100 12
4HREG 020 120 S04 2 2.4 8 45 4 12 18 50 120 12
4HREG 020 160 S04 2 2.4 10 50 4
4HREG 020 200 S04 2 2.4 12 50 4
4HREG 020 250 S04 2 2.4 16 50 4
4HREG 020 300 S04 2 2.4 20 50 4
4HREG 025 100 S04 2 2.4 25 60 4
4HREG 025 120 S04 2 2.4 30 70 4
4HREG 025 160 S04 2.5 3 10 50 4
4HREG 025 200 S04 2.5 3 12 50 4
4HREG 025 250 S04 2.5 3 16 50 4
4HREG 025 300 S04 2.5 3 20 50 4
4HREG 030 100 S06 2.5 3 25 60 4
4HREG 030 120 S06 2.5 3 30 70 4
3 3.6 10 50 6
99 JJ TOOLS 3 3.6 12 50 6
