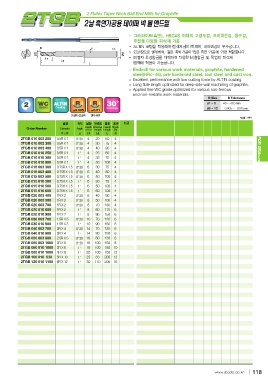

2 Flutes Taper Neck Ball End Mills for Graphite

2

Endmill for various work materials, graphite, hardened

steel(HRc~48), pre-hardened steel, tool steel and cast iron.

Excellent performance with low cutting force by ALTIN coating.

Long flute length optimized for deep-side wall machining of graphite.

Applied fine WC grade optimized for various non-ferrous

and non-metallic work materials.

D Size D Tolerance

1 ~ 5 +0 ~ -0.01mm

0.005 0.01 6 ~ 12 -0.005 ~ -0.015mm

0.5R~2.5R 3R~6R mm

Order Number Diameter Angle Length Effective Overall Shank
RD of cut Length Length Dia

L1 L2 L d

2TGB 010 003 200 0.5R X 1 0 30 4 20 60 4 FOR GRAPHITE

2TGB 010 003 300 0.5R X 1 0 30 4 30 75 4

2TGB 010 003 400 0.5R X 1 0 30 4 40 90 4

2TGB 010 010 250 0.5R X 1 1 4 25 60 4

2TGB 010 010 350 0.5R X 1 1 4 35 75 4

2TGB 010 010 500 0.5R X 1 1 4 50 100 4

2TGB 015 003 300 0.75R X 1.5 0 30 6 30 75 4

2TGB 015 003 400 0.75R X 1.5 0 30 6 40 80 4

2TGB 015 003 500 0.75R X 1.5 0 30 6 50 100 4

2TGB 015 010 300 0.75R X 1.5 1 6 30 75 4

2TGB 015 010 500 0.75R X 1.5 1 6 50 100 4

2TGB 015 010 600 0.75R X 1.5 1 6 60 100 4

2TGB 020 003 400 1R X 2 0 30 8 40 90 4

2TGB 020 003 500 1R X 2 0 30 8 50 100 4

2TGB 020 003 700 1R X 2 0 30 8 70 130 4

2TGB 020 010 600 1R X 2 1 8 60 110 6

2TGB 020 010 900 1R X 2 1 8 90 150 6

2TGB 030 003 700 1.5R X 3 0 30 10 70 120 6

2TGB 030 010 900 1.5R X 3 1 10 90 150 6

2TGB 040 003 700 2R X 4 0 30 14 70 120 6

2TGB 040 010 800 2R X 4 1 14 80 150 6

2TGB 050 003 800 2.5R X 5 0 30 16 80 130 6

2TGB 060 003 1000 3R X 6 0 30 16 100 150 8

2TGB 060 010 1000 3R X 6 1 16 100 150 10

2TGB 080 010 1000 4R X 8 1 20 100 150 12

2TGB 100 010 830 5R X 10 1 25 83 200 12

2TGB 120 010 1100 6R X 12 1 30 110 200 16
