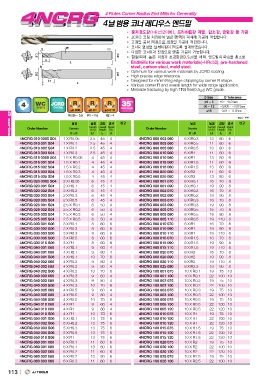

4 Flutes Corner Radius End Mills for Generality

4

Endmills for various work materials(~HRc52), pre-hardened
steel , carbon steel, mold steel.
Optimum for various work materials by JCRO coating.
High precise edge tolerance.
Designed for minimizing edge chipping by corner R shape.
Various corner R and overall length for wide range application.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

G series 0.005 0.01 0.015 D Size D Tolerance
R2 ~ 4 1~5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm
16 -0.01 ~ -0.02mm

R0.05 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia of cut Length Dia
4NCRG 010 0005 S04 DR L1 L d 4NCRG 060 003 080 DR L1 L d
4NCRG 010 001 S04 4NCRG 060 005 060
4NCRG 010 002 S04 1 X R0.05 2.5 45 4 4NCRG 060 005 080 6 X R0.3 13 80 6
4NCRG 010 003 S04 1 X R0.1 2.5 45 4 4NCRG 060 010 060 6 X R0.5 11 60 6
4NCRG 015 0005 S04 1 X R0.2 2.5 45 4 4NCRG 060 010 080 6 X R0.5 13 80 6
4NCRG 015 001 S04 1 X R0.3 2.5 45 4 4NCRG 060 015 060 6 X R1 11 60 6
4NCRG 015 002 S04 1.5 X R0.05 4 45 4 4NCRG 060 015 080 6 X R1 13 80 6
4NCRG 015 003 S04 1.5 X R0.1 4 45 4 4NCRG 060 020 060 6 X R1.5 11 60 6
4NCRG 015 005 S04 1.5 X R0.2 4 45 4 4NCRG 060 020 080 6 X R1.5 13 80 6
4NCRG 020 0005 S04 1.5 X R0.3 4 45 4 4NCRG 080 001 070 6 X R2 11 60 6
4NCRG 020 001 S04 1.5 X R0.5 4 45 4 4NCRG 080 001 090 6 X R2 13 80 6
4NCRG 020 002 S04 2 X R0.05 6 45 4 4NCRG 080 002 070 8 X R0.1 16 70 8
4NCRG 020 003 S04 2 X R0.1 6 45 4 4NCRG 080 002 090 8 X R0.1 19 90 8
4NCRG 020 005 S04 2 X R0.2 6 45 4 4NCRG 080 003 070 8 X R0.2 16 70 8
4NCRG 025 001 S04 2 X R0.3 6 45 4 4NCRG 080 003 090 8 X R0.2 19 90 8
4NCRG 025 002 S04 2 X R0.5 6 45 4 4NCRG 080 005 070 8 X R0.3 16 70 8
4NCRG 025 003 S04 2.5 X R0.1 6 50 4 4NCRG 080 005 090 8 X R0.3 19 90 8
4NCRG 025 005 S04 2.5 X R0.2 6 50 4 4NCRG 080 005 110 8 X R0.5 16 70 8
4NCRG 030 001 S06 2.5 X R0.3 6 50 4 4NCRG 080 010 070 8 X R0.5 19 90 8
4NCRG 030 002 S06 2.5 X R0.5 6 50 4 4NCRG 080 010 090 8 X R0.5 19 110 8
4NCRG 030 003 S06 3 X R0.1 8 60 6 4NCRG 080 010 110 8 X R1 16 70 8
4NCRG 030 005 S06 3 X R0.2 8 60 6 4NCRG 080 015 070 8 X R1 19 90 8
4NCRG 030 010 S06 3 X R0.3 8 60 6 4NCRG 080 015 090 8 X R1 19 110 8
4NCRG 040 001 060 3 X R0.5 8 60 6 4NCRG 080 015 110 8 X R1.5 16 70 8
4NCRG 040 001 080 3 X R1 8 60 6 4NCRG 080 020 070 8 X R1.5 19 90 8
4NCRG 040 001 S06 4 X R0.1 9 60 4 4NCRG 080 020 090 8 X R1.5 19 110 8
4NCRG 040 002 060 4 X R0.1 9 80 4 4NCRG 080 020 110 8 X R2 16 70 8
4NCRG 040 002 080 4 X R0.1 10 70 6 4NCRG 080 025 090 8 X R2 19 90 8
4NCRG 040 002 S06 4 X R0.2 9 60 4 4NCRG 100 001 075 8 X R2 19 110 8
4NCRG 040 003 060 4 X R0.2 9 80 4 4NCRG 100 001 100 8 X R2.5 19 90 8
4NCRG 040 003 080 4 X R0.2 10 70 6 4NCRG 100 002 075 10 X R0.1 19 75 10
4NCRG 040 003 S06 4 X R0.3 9 60 4 4NCRG 100 002 100 10 X R0.1 22 100 10
4NCRG 040 005 060 4 X R0.3 9 80 4 4NCRG 100 003 075 10 X R0.2 19 75 10
4NCRG 040 005 080 4 X R0.3 10 70 6 4NCRG 100 003 100 10 X R0.2 22 100 10
4NCRG 040 005 S06 4 X R0.5 9 60 4 4NCRG 100 005 075 10 X R0.3 19 75 10
4NCRG 040 010 060 4 X R0.5 9 80 4 4NCRG 100 005 100 10 X R0.3 22 100 10
4NCRG 040 010 080 4 X R0.5 10 70 6 4NCRG 100 005 120 10 X R0.5 19 75 10
4NCRG 040 010 S06 4 X R1 9 60 4 4NCRG 100 010 075 10 X R0.5 22 100 10
4NCRG 050 001 S06 4 X R1 9 80 4 4NCRG 100 010 100 10 X R0.5 22 120 10
4NCRG 050 002 S06 4 X R1 10 70 6 4NCRG 100 010 120 10 X R1 19 75 10
4NCRG 050 003 S06 5 X R0.1 13 75 6 4NCRG 100 015 075 10 X R1 22 100 10
4NCRG 050 005 S06 5 X R0.2 13 75 6 4NCRG 100 015 100 10 X R1 22 120 10
4NCRG 050 010 S06 5 X R0.3 13 75 6 4NCRG 100 015 120 10 X R1.5 19 75 10
4NCRG 060 001 060 5 X R0.5 13 75 6 4NCRG 100 020 075 10 X R1.5 22 100 10
4NCRG 060 001 080 5 X R1 13 75 6 4NCRG 100 020 100 10 X R1.5 22 120 10
4NCRG 060 002 060 6 X R0.1 11 60 6 4NCRG 100 020 120 10 X R2 19 75 10
4NCRG 060 002 080 6 X R0.1 13 80 6 4NCRG 100 025 075 10 X R2 22 100 10
4NCRG 060 003 060 6 X R0.2 11 60 6 4NCRG 100 025 100 10 X R2 22 120 10
6 X R0.2 13 80 6 10 X R2.5 19 75 10
6 X R0.3 11 60 6 10 X R2.5 22 100 10

113 JJ TOOLS
