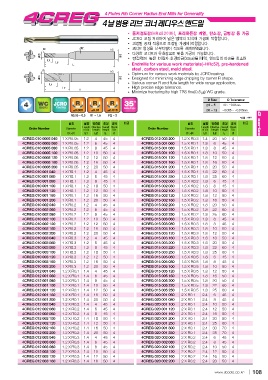

4 Flutes Rib Corner Radius End Mills for Generality

4

Endmills for various work materials(~HRc52), pre-hardened
steel , carbon steel, mold steel.
Optimum for various work materials by JCROcoating.
Designed for minimizing edge chipping by corner R shape.
Various corner R and flute length for wide range application.
High precise edge tolerance.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

0.005 0.01 0.015 D Size D Tolerance G series
R2 ~ 3 1~5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm

R0.05 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
DR of cut Length Length Dia DR of cut Length Length Dia
4CREG 010 0005 040 4CREG 012 003 200
4CREG 010 0005 060 L1 L2 L d 4CREG 015 001 060 L1 L2 L d
4CREG 010 0005 080 4CREG 015 001 080
4CREG 010 0005 100 1 X R0.05 1.2 4 45 4 4CREG 015 001 100 1.2 X R0.3 1.4 20 50 4
4CREG 010 0005 120 1 X R0.05 1.2 6 45 4 4CREG 015 001 120 1.5 X R0.1 1.8 6 45 4
4CREG 010 0005 160 1 X R0.05 1.2 8 45 4 4CREG 015 001 160 1.5 X R0.1 1.8 8 45 4
4CREG 010 0005 200 1 X R0.05 1.2 10 50 4 4CREG 015 001 200 1.5 X R0.1 1.8 10 50 4
4CREG 010 001 040 1 X R0.05 1.2 12 50 4 4CREG 015 001 220 1.5 X R0.1 1.8 12 50 4
4CREG 010 001 060 1 X R0.05 1.2 16 50 4 4CREG 015 001 250 1.5 X R0.1 1.8 16 50 4
4CREG 010 001 080 1 X R0.05 1.2 20 50 4 4CREG 015 002 060 1.5 X R0.1 1.8 20 50 4
4CREG 010 001 100 1 X R0.1 1.2 4 45 4 4CREG 015 002 080 1.5 X R0.1 1.8 22 60 4
4CREG 010 001 120 1 X R0.1 1.2 6 45 4 4CREG 015 002 100 1.5 X R0.1 1.8 25 60 4
4CREG 010 001 160 1 X R0.1 1.2 8 45 4 4CREG 015 002 120 1.5 X R0.2 1.8 6 45 4
4CREG 010 001 200 1 X R0.1 1.2 10 50 4 4CREG 015 002 160 1.5 X R0.2 1.8 8 45 4
4CREG 010 002 040 1 X R0.1 1.2 12 50 4 4CREG 015 002 200 1.5 X R0.2 1.8 10 50 4
4CREG 010 002 060 1 X R0.1 1.2 16 50 4 4CREG 015 002 220 1.5 X R0.2 1.8 12 50 4
4CREG 010 002 080 1 X R0.1 1.2 20 50 4 4CREG 015 002 250 1.5 X R0.2 1.8 16 50 4
4CREG 010 002 100 1 X R0.2 1.2 4 45 4 4CREG 015 003 060 1.5 X R0.2 1.8 20 50 4
4CREG 010 002 120 1 X R0.2 1.2 6 45 4 4CREG 015 003 080 1.5 X R0.2 1.8 22 60 4
4CREG 010 002 160 1 X R0.2 1.2 8 45 4 4CREG 015 003 100 1.5 X R0.2 1.8 25 60 4
4CREG 010 002 200 1 X R0.2 1.2 10 50 4 4CREG 015 003 120 1.5 X R0.3 1.8 6 45 4
4CREG 010 003 040 1 X R0.2 1.2 12 50 4 4CREG 015 003 160 1.5 X R0.3 1.8 8 45 4
4CREG 010 003 060 1 X R0.2 1.2 16 50 4 4CREG 015 003 200 1.5 X R0.3 1.8 10 50 4
4CREG 010 003 080 1 X R0.2 1.2 20 50 4 4CREG 015 003 220 1.5 X R0.3 1.8 12 50 4
4CREG 010 003 100 1 X R0.3 1.2 4 45 4 4CREG 015 003 250 1.5 X R0.3 1.8 16 50 4
4CREG 010 003 120 1 X R0.3 1.2 6 45 4 4CREG 015 005 060 1.5 X R0.3 1.8 20 50 4
4CREG 010 003 160 1 X R0.3 1.2 8 45 4 4CREG 015 005 080 1.5 X R0.3 1.8 22 60 4
4CREG 010 003 200 1 X R0.3 1.2 10 50 4 4CREG 015 005 100 1.5 X R0.3 1.8 25 60 4
4CREG 012 001 040 1 X R0.3 1.2 12 50 4 4CREG 015 005 120 1.5 X R0.5 1.8 6 45 4
4CREG 012 001 060 1 X R0.3 1.2 16 50 4 4CREG 015 005 160 1.5 X R0.5 1.8 8 45 4
4CREG 012 001 080 1 X R0.3 1.2 20 50 4 4CREG 015 005 200 1.5 X R0.5 1.8 10 50 4
4CREG 012 001 100 1.2 X R0.1 1.4 4 45 4 4CREG 015 005 220 1.5 X R0.5 1.8 12 50 4
4CREG 012 001 120 1.2 X R0.1 1.4 6 45 4 4CREG 015 005 250 1.5 X R0.5 1.8 16 50 4
4CREG 012 001 160 1.2 X R0.1 1.4 8 45 4 4CREG 020 001 060 1.5 X R0.5 1.8 20 50 4
4CREG 012 001 200 1.2 X R0.1 1.4 10 50 4 4CREG 020 001 080 1.5 X R0.5 1.8 22 60 4
4CREG 012 002 040 1.2 X R0.1 1.4 12 50 4 4CREG 020 001 100 1.5 X R0.5 1.8 25 60 4
4CREG 012 002 060 1.2 X R0.1 1.4 16 50 4 4CREG 020 001 120 2 X R0.1 2.4 6 45 4
4CREG 012 002 080 1.2 X R0.1 1.4 20 50 4 4CREG 020 001 160 2 X R0.1 2.4 8 45 4
4CREG 012 002 100 1.2 X R0.2 1.4 4 45 4 4CREG 020 001 200 2 X R0.1 2.4 10 50 4
4CREG 012 002 120 1.2 X R0.2 1.4 6 45 4 4CREG 020 001 250 2 X R0.1 2.4 12 50 4
4CREG 012 002 160 1.2 X R0.2 1.4 8 45 4 4CREG 020 001 300 2 X R0.1 2.4 16 50 4
4CREG 012 002 200 1.2 X R0.2 1.4 10 50 4 4CREG 020 001 350 2 X R0.1 2.4 20 50 4
4CREG 012 003 040 1.2 X R0.2 1.4 12 50 4 4CREG 020 002 060 2 X R0.1 2.4 25 60 4
4CREG 012 003 060 1.2 X R0.2 1.4 16 50 4 4CREG 020 002 080 2 X R0.1 2.4 30 70 4
4CREG 012 003 080 1.2 X R0.2 1.4 20 50 4 4CREG 020 002 100 2 X R0.1 2.4 35 70 4
4CREG 012 003 100 1.2 X R0.3 1.4 4 45 4 4CREG 020 002 120 2 X R0.2 2.4 6 45 4
4CREG 012 003 120 1.2 X R0.3 1.4 6 45 4 4CREG 020 002 160 2 X R0.2 2.4 8 45 4
4CREG 012 003 160 1.2 X R0.3 1.4 8 45 4 4CREG 020 002 200 2 X R0.2 2.4 10 50 4
1.2 X R0.3 1.4 10 50 4 2 X R0.2 2.4 12 50 4
1.2 X R0.3 1.4 12 50 4 2 X R0.2 2.4 16 50 4
1.2 X R0.3 1.4 16 50 4 2 X R0.2 2.4 20 50 4
