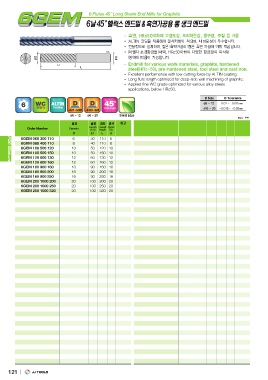

6 Flutes 45 Long Shank End Mills for Graphite

6 45

Endmill for various work materials, graphite, hardened
steel(HRc~50), pre-hardened steel, tool steel and cast iron.
Excellent performance with low cutting force by ALTIN coating.
Long flute length optimized for deep-side wall machining of graphite.
Applied fine WC grade optimized for various alloy steels
applications, below HRc50.

0.01 0.025 0.015 0.03 D Size D Tolerance
6 ~ 12 -0.01 ~ -0.025mm
6 ~ 20 -0.015 ~ -0.03mm

6 ~ 12 6 ~ 20 Shield Edge mm

FOR GRAPHITE Order Number Diameter Length Overall Shank
of cut Length Dia
6GEM 060 300 110 D L1 L d
6GEM 080 400 110
6GEM 100 500 120 6 30 110 6
6GEM 100 500 150 8 40 110 8
6GEM 120 600 130 10 50 120 10
6GEM 120 600 160 10 50 150 10
6GEM 160 900 160 12 60 130 12
6GEM 160 900 200 12 60 160 12
6GEM 160 900 250 16 90 160 16
6GEM 200 1000 200 16 90 200 16
6GEM 200 1000 250 16 90 250 16
6GEM 200 1000 320 20 100 200 20
20 100 250 20
20 100 320 20

121 JJ TOOLS
