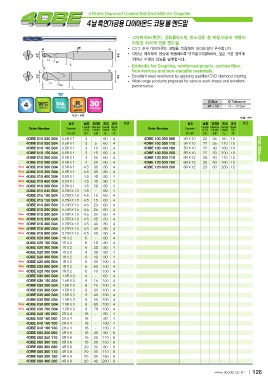

4 Flutes Diamond Coated Ball End Mills for Graphite

4

Endmills for Graphite, reinforced plastic, carbon fiber,
Non-ferrous and non-metallic materials.
Excellent wear resistance by applying qualified CVD diamond coating.
Wide range products prepared for various work shape and excellent
performance.

D Size D Tolerance
1 ~ 12 +0 ~ -0.02mm

0.01 mm
0.5 ~ 6R

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank FOR GRAPHITE
of cut Length Length Dia of cut Length Length Dia
4DBE 010 030 S04 RD L1 L2 L d 4DBE 100 350 080 RD L1 L2 L d
4DBE 010 050 S04 4DBE 100 350 110
4DBE 010 100 S04 0.5R X 1 3 - 60 4 4DBE 100 400 160 5R X 10 22 35 80 10
4DBE 010 150 S04 0.5R X 1 3 5 60 4 4DBE 100 500 200 5R X 10 22 35 110 10
4DBE 010 200 S04 0.5R X 1 3 10 60 4 4DBE 120 500 110 5R X 10 22 40 160 10
4DBE 010 250 S04 0.5R X 1 3 15 60 4 4DBE 120 500 160 5R X 10 22 50 200 10
New 4DBE 010 300 S04 0.5R X 1 3 20 60 4 4DBE 120 600 200 6R X 12 25 50 110 12
New 4DBE 010 350 S04 0.5R X 1 3 25 60 4 6R X 12 25 50 160 12
New 4DBE 010 400 S04 0.5R X 1 4.5 30 80 4 6R X 12 25 60 200 12
New 4DBE 010 450 S04 0.5R X 1 4.5 35 80 4
New 4DBE 010 500 S04 0.5R X 1 4.5 40 80 4
4DBE 015 045 S04 0.5R X 1 4.5 45 80 4
4DBE 015 100 S04 0.5R X 1 4.5 50 80 4
4DBE 015 150 S04 0.75R X 1.5 4.5 - 60 4
4DBE 015 200 S04 0.75R X 1.5 4.5 10 60 4
4DBE 015 250 S04 0.75R X 1.5 4.5 15 60 4
New 4DBE 015 300 S04 0.75R X 1.5 4.5 20 60 4
New 4DBE 015 350 S04 0.75R X 1.5 4.5 25 60 4
New 4DBE 015 400 S04 0.75R X 1.5 4.5 30 80 4
New 4DBE 015 450 S04 0.75R X 1.5 4.5 35 80 4
New 4DBE 015 500 S04 0.75R X 1.5 4.5 40 80 4
4DBE 020 060 S04 0.75R X 1.5 4.5 45 80 4
4DBE 020 100 S04 0.75R X 1.5 4.5 50 80 4
4DBE 020 200 S04 1R X 2 6 - 60 4
4DBE 020 300 S04 1R X 2 6 10 80 4
4DBE 020 400 S04 1R X 2 6 20 80 4
New 4DBE 020 500 S04 1R X 2 6 30 80 4
New 4DBE 020 600 S04 1R X 2 6 40 80 4
New 4DBE 020 700 S04 1R X 2 6 50 100 4
4DBE 030 080 S04 1R X 2 6 60 100 4
4DBE 030 150 S04 1R X 2 6 70 100 4
4DBE 030 200 S04 1.5R X 3 8 - 60 4
4DBE 030 300 S04 1.5R X 3 8 15 100 4
4DBE 030 400 S04 1.5R X 3 8 20 100 4
4DBE 030 500 S04 1.5R X 3 8 30 100 4
New 4DBE 030 600 S04 1.5R X 3 8 40 100 4
New 4DBE 030 700 S04 1.5R X 3 8 50 100 4
4DBE 040 160 060 1.5R X 3 8 60 100 4
4DBE 040 160 080 1.5R X 3 8 70 100 4
4DBE 040 160 100 2R X 4 16 - 60 4
4DBE 040 160 130 2R X 4 16 - 80 4
4DBE 060 250 080 2R X 4 16 - 100 4
4DBE 060 250 110 2R X 4 16 - 130 4
4DBE 060 300 150 3R X 6 16 25 80 6
4DBE 080 300 080 3R X 6 16 25 110 6
4DBE 080 300 110 3R X 6 16 30 150 6
4DBE 080 350 150 4R X 8 20 30 80 8
4DBE 080 400 200 4R X 8 20 30 110 8
4R X 8 20 35 150 8
4R X 8 20 40 200 8

www.jjtools.co.kr 126
