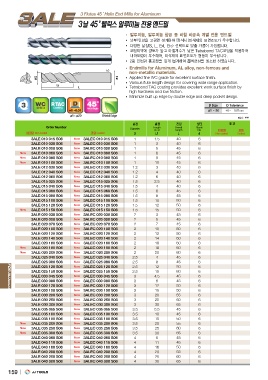

3 Flutes 45 Helix End Mills for Aluminum

3 45

Endmills for Aluminum, AL alloy, non-ferrous and
non-metallic materials.

Applied fine WC grade for excellent surface finish.

Various flute length design for covering wide range application.
Tetrabond TAC coating provides excellent work surface finish by
high hardness and low friction.

Minimize built up edge by double edge and deep pocket design.

0 0.01 D Size D Tolerance
1~ 20 1 ~ 20 +0 ~ -0.01mm

Shield Edge mm

Order Number Coated Diameter Length Overall Shank Non coated Coated
of cut Length Dia
FOR ALUMINUM Non coated New 3ALEC 010 015 S06 D L1 d
New 3ALEC 010 030 S06 L
3ALE 010 015 S06 New 3ALEC 010 050 S06 1 1.5 6
3ALE 010 030 S06 New 3ALEC 010 060 S06 1 3 40 6
3ALE 010 050 S06 New 3ALEC 010 080 S06 1 5 40 6
New 3ALE 010 060 S06 New 3ALEC 010 100 S06 1 6 45 6
New 3ALE 010 080 S06 New 3ALEC 012 030 S06 1 8 45 6
New 3ALE 010 100 S06 New 3ALEC 012 040 S06 1 10 45 6
3ALE 012 030 S06 New 3ALEC 012 060 S06 1.2 3 45 6
3ALE 012 040 S06 New 3ALEC 015 025 S06 1.2 4 40 6
3ALE 012 060 S06 New 3ALEC 015 040 S06 1.2 6 40 6
3ALE 015 025 S06 New 3ALEC 015 060 S06 1.5 2.5 40 6
3ALE 015 040 S06 New 3ALEC 015 080 S06 1.5 4 40 6
3ALE 015 060 S06 New 3ALEC 015 100 S06 1.5 6 40 6
3ALE 015 080 S06 New 3ALEC 015 120 S06 1.5 8 45 6
3ALE 015 100 S06 New 3ALEC 015 150 S06 1.5 10 45 6
3ALE 015 120 S06 New 3ALEC 020 030 S06 1.5 12 50 6
New 3ALE 015 150 S06 New 3ALEC 020 050 S06 1.5 15 50 6
3ALE 020 030 S06 New 3ALEC 020 070 S06 2 3 50 6
3ALE 020 050 S06 New 3ALEC 020 100 S06 2 5 45 6
3ALE 020 070 S06 New 3ALEC 020 120 S06 2 7 45 6
3ALE 020 100 S06 New 3ALEC 020 140 S06 2 10 45 6
3ALE 020 120 S06 New 3ALEC 020 160 S06 2 12 50 6
3ALE 020 140 S06 New 3ALEC 020 180 S06 2 14 50 6
3ALE 020 160 S06 New 3ALEC 020 200 S06 2 16 60 6
New 3ALE 020 180 S06 New 3ALEC 025 040 S06 2 18 60 6
New 3ALE 020 200 S06 New 3ALEC 025 080 S06 2 20 60 6
3ALE 025 040 S06 New 3ALEC 025 120 S06 2.5 4 60 6
3ALE 025 080 S06 New 3ALEC 025 150 S06 2.5 8 45 6
3ALE 025 120 S06 New 3ALEC 030 045 S06 2.5 12 45 6
3ALE 025 150 S06 New 3ALEC 030 080 S06 2.5 15 50 6
3ALE 030 045 S06 New 3ALEC 030 120 S06 3 4.5 60 6
3ALE 030 080 S06 New 3ALEC 030 150 S06 3 8 45 6
3ALE 030 120 S06 New 3ALEC 030 200 S06 3 12 45 6
3ALE 030 150 S06 New 3ALEC 030 250 S06 3 15 50 6
3ALE 030 200 S06 New 3ALEC 030 300 S06 3 20 50 6
3ALE 030 250 S06 New 3ALEC 035 055 S06 3 25 55 6
3ALE 030 300 S06 New 3ALEC 035 100 S06 3 30 60 6
3ALE 035 055 S06 New 3ALEC 035 150 S06 3.5 5.5 65 6
3ALE 035 100 S06 New 3ALEC 035 200 S06 3.5 10 45 6
3ALE 035 150 S06 New 3ALEC 035 250 S06 3.5 15 45 6
New 3ALE 035 200 S06 New 3ALEC 035 300 S06 3.5 20 50 6
New 3ALE 035 250 S06 New 3ALEC 040 060 S06 3.5 25 55 6
New 3ALE 035 300 S06 New 3ALEC 040 110 S06 3.5 30 60 6
3ALE 040 060 S06 New 3ALEC 040 160 S06 4 6 65 6
3ALE 040 110 S06 New 3ALEC 040 200 S06 4 11 45 6
3ALE 040 160 S06 New 3ALEC 040 250 S06 4 16 45 6
3ALE 040 200 S06 New 3ALEC 040 300 S06 4 20 50 6
3ALE 040 250 S06 4 25 55 6
3ALE 040 300 S06 4 30 60 6
