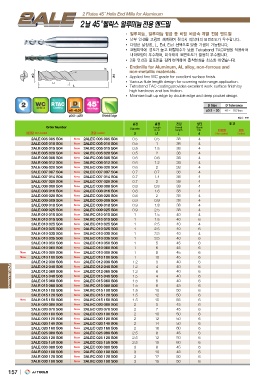

2 Flutes 45 Helix End Mills for Aluminum

2 45

Endmills for Aluminum, AL alloy, non-ferrous and
non-metallic materials.

Applied fine WC grade for excellent surface finish.

Various flute length design for covering wide range application.
Tetrabond TAC coating provides excellent work surface finish by
high hardness and low friction.

Minimize built up edge by double edge and deep pocket design.

D Size D Tolerance

0 0.01 0.5 ~ 20 +0 ~ -0.01mm
0.5~ 20
Shield Edge mm

Order Number Coated Diameter Length Overall Shank Non coated Coated
of cut Length Dia
FOR ALUMINUM Non coated New 2ALEC 005 005 S04 D L1 d
New 2ALEC 005 010 S04 L
2ALE 005 005 S04 New 2ALEC 005 015 S04 0.5 0.5 4
2ALE 005 010 S04 New 2ALEC 005 020 S04 0.5 1 38 4
2ALE 005 015 S04 New 2ALEC 006 006 S04 0.5 1.5 38 4
2ALE 005 020 S04 New 2ALEC 006 012 S04 0.5 2 38 4
2ALE 006 006 S04 New 2ALEC 006 020 S04 0.6 0.6 38 4
2ALE 006 012 S04 New 2ALEC 007 007 S04 0.6 1.2 38 4
2ALE 006 020 S04 New 2ALEC 007 014 S04 0.6 2 38 4
2ALE 007 007 S04 New 2ALEC 007 020 S04 0.7 0.7 38 4
2ALE 007 014 S04 New 2ALEC 008 008 S04 0.7 1.4 38 4
2ALE 007 020 S04 New 2ALEC 008 016 S04 0.7 2 38 4
2ALE 008 008 S04 New 2ALEC 008 020 S04 0.8 0.8 38 4
2ALE 008 016 S04 New 2ALEC 009 009 S04 0.8 1.6 38 4
2ALE 008 020 S04 New 2ALEC 009 018 S04 0.8 2 38 4
2ALE 009 009 S04 New 2ALEC 009 025 S04 0.9 0.9 38 4
2ALE 009 018 S04 New 2ALEC 010 015 S04 0.9 1.8 38 4
2ALE 009 025 S04 New 2ALEC 010 015 S06 0.9 2.5 38 4
2ALE 010 015 S04 New 2ALEC 010 025 S04 1 1.5 38 4
2ALE 010 015 S06 New 2ALEC 010 025 S06 1 1.5 40 6
2ALE 010 025 S04 New 2ALEC 010 035 S04 1 2.5 40 4
2ALE 010 025 S06 New 2ALEC 010 035 S06 1 2.5 40 6
2ALE 010 035 S04 New 2ALEC 010 050 S06 1 3.5 40 4
2ALE 010 035 S06 New 2ALEC 010 060 S06 1 3.5 40 6
2ALE 010 050 S06 New 2ALEC 010 080 S06 1 5 40 6
2ALE 010 060 S06 New 2ALEC 010 100 S06 1 6 45 6
New 2ALE 010 080 S06 New 2ALEC 012 030 S06 1 8 45 6
New 2ALE 010 100 S06 New 2ALEC 012 040 S06 1 10 45 6
2ALE 012 030 S06 New 2ALEC 012 060 S06 1.2 3 45 6
2ALE 012 040 S06 New 2ALEC 015 040 S06 1.2 4 40 6
2ALE 012 060 S06 New 2ALEC 015 060 S06 1.2 6 40 6
2ALE 015 040 S06 New 2ALEC 015 080 S06 1.5 4 40 6
2ALE 015 060 S06 New 2ALEC 015 100 S06 1.5 6 40 6
2ALE 015 080 S06 New 2ALEC 015 120 S06 1.5 8 40 6
2ALE 015 100 S06 New 2ALEC 015 150 S06 1.5 10 45 6
2ALE 015 120 S06 New 2ALEC 020 050 S06 1.5 12 50 6
New 2ALE 015 150 S06 New 2ALEC 020 070 S06 1.5 15 50 6
2ALE 020 050 S06 New 2ALEC 020 100 S06 2 5 55 6
2ALE 020 070 S06 New 2ALEC 020 120 S06 2 7 45 6
2ALE 020 100 S06 New 2ALEC 020 140 S06 2 10 45 6
2ALE 020 120 S06 New 2ALEC 020 160 S06 2 12 50 6
2ALE 020 140 S06 New 2ALEC 025 080 S06 2 14 50 6
2ALE 020 160 S06 New 2ALEC 025 120 S06 2 16 50 6
2ALE 025 080 S06 New 2ALEC 025 150 S06 2.5 8 60 6
2ALE 025 120 S06 New 2ALEC 030 080 S06 2.5 12 45 6
2ALE 025 150 S06 New 2ALEC 030 100 S06 2.5 15 50 6
2ALE 030 080 S06 New 2ALEC 030 120 S06 3 8 60 6
2ALE 030 100 S06 New 2ALEC 030 150 S06 3 10 45 6
2ALE 030 120 S06 3 12 45 6
2ALE 030 150 S06 3 15 50 6
50
