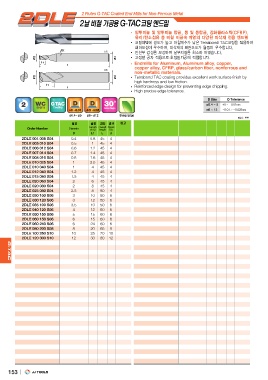

2 Flutes G-TAC Coated End Mills for Non-Ferrous Metal

2 G-TAC

Endmills for Aluminum, Aluminum alloy, copper,
copper alloy, CFRP, glass/carbon fiber, nonferrous and
non-metallic materials.
Tetrabond TAC coating provides excellent work surface finish by

high hardness and low friction.

Reinforced edge design for preventing edge chipping.

High precise edge tolerance.

0 0.01 0.01 0.025 D Size D Tolerance
0.4~ 5 6~ 12 0.4 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm

Sharp Edge mm

Order Number Diameter Length Overall Shank
of cut Length Dia
2DLE 004 008 S04 D L1 L d
2DLE 005 010 S04
2DLE 006 012 S04 0.4 0.8 45 4
2DLE 007 014 S04 0.5 1 45 4
2DLE 008 016 S04 0.6 1.2 45 4
2DLE 010 025 S04 0.7 1.4 45 4
2DLE 010 040 S04 0.8 1.6 45 4
2DLE 012 040 S04 1 2.5 45 4
2DLE 015 040 S04 1 4 45 4
2DLE 020 060 S04 1.2 4 45 4
2DLE 020 080 S04 1.5 4 45 4
2DLE 025 080 S04 2 6 45 4
2DLE 030 100 S06 2 8 45 4
2DLE 030 120 S06 2.5 8 50 4
2DLE 035 100 S06 3 10 50 6
2DLE 040 120 S06 3 12 50 6
2DLE 050 150 S06 3.5 10 50 6
2DLE 060 150 S06 4 12 60 6
2DLE 060 240 S06 5 15 60 6
2DLE 080 200 S08 6 15 60 6
2DLE 100 250 S10 6 24 60 6
2DLE 120 300 S10 8 20 65 8
10 25 70 10
12 30 80 12

G-TAC
