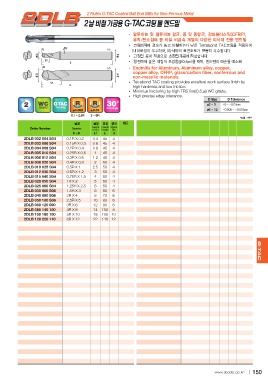

2 Flutes G-TAC Coated Ball End Mills for Non-Ferrous Metal

2 G-TAC

Endmills for Aluminum, Aluminum alloy, copper,
copper alloy, CFRP, glass/carbon fiber, nonferrous and
non-metallic materials.

Tetrabond TAC coating provides excellent work surface finish by

high hardness and low friction.

Minimize fracturing by high TRS fine(0.5 ) WC grade.

High precise edge tolerance.

D Size D Tolerance

2 ~ 5 +0 ~ -0.01mm

0.005 0.01 6 ~ 12 -0.005 ~ -0.015mm
0.1 ~ 2.5R 3 ~ 6R
mm

Order Number Diameter Length Overall Shank
of cut Length Dia
2DLB 002 004 S04 RD L1 L d
2DLB 003 006 S04
2DLB 004 008 S04 0.1R X 0.2 0.4 45 4
2DLB 005 010 S04 0.15R X 0.3 0.6 45 4
2DLB 006 012 S04 0.2R X 0.4 0.8 45 4
2DLB 008 020 S04 0.25R X 0.5 1 45 4
2DLB 010 025 S04 0.3R X 0.6 1.2 45 4
2DLB 012 030 S04 0.4R X 0.8 2 50 4
2DLB 015 040 S04 0.5R X 1 2.5 50 4
2DLB 020 050 S04 0.6R X 1.2 3 50 4
2DLB 025 060 S04 0.75R X 1.5 4 50 4
2DLB 030 080 S06 1R X 2 5 50 4
2DLB 040 080 S06 1.25R X 2.5 6 50 4
2DLB 050 100 S06 1.5R X 3 8 60 6
2DLB 060 120 090 2R X 4 8 70 6
2DLB 080 140 100 2.5R X 5 10 80 6
2DLB 100 180 100 3R X 6 12 90 6
2DLB 120 220 110 4R X 8 14 100 8
5R X 10 18 100 10
6R X 12 22 110 12

G-TAC
