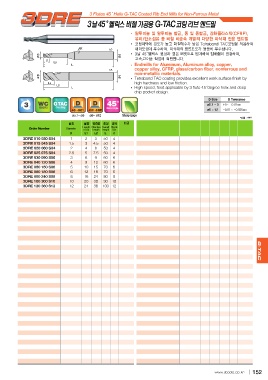

3 Flutes 45 Helix G-TAC Coated Rib End Mills for Non-Ferrous Metal

3 45 G-TAC

Endmills for Aluminum, Aluminum alloy, copper,
copper alloy, CFRP, glass/carbon fiber, nonferrous and
non-metallic materials.
Tetrabond TAC coating provides excellent work surface finish by

high hardness and low friction.
High speed, feed applicable by 3 flute 45 degree helix and deep
chip pocket design.

0 0.01 0.01 0.025 D Size D Tolerance
1~ 5 6~ 12 0.1 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm

Sharp Edge mm

Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia
3DRE 010 030 S04 D L1 L2 L d
3DRE 015 045 S04
3DRE 020 060 S04 1 2 3 50 4
3DRE 025 075 S04 1.5 3 4.5 50 4
3DRE 030 090 S06 2 4 6 50 4
3DRE 040 120 S06 2.5 5 7.5 50 4
3DRE 050 150 S06 3 6 9 60 6
3DRE 060 180 S06 4 9 12 60 6
3DRE 080 240 S08 5 10 15 70 6
3DRE 100 300 S10 6 12 18 70 6
3DRE 120 360 S12 8 16 24 80 8
10 20 30 90 10
12 24 36 100 12

G-TAC

www.jjtools.co.kr 152
