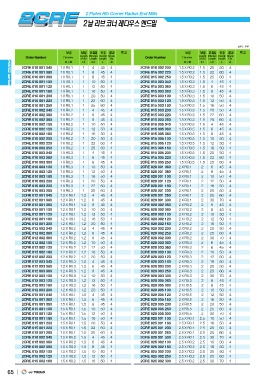

2 Flutes Rib Corner Radius End Mills

2

mm

HARD series Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia of cut Length Length Dia
2CRE 010 001 040 DR L1 L2 L d 2CRE 015 002 200 DR L1 L2 L d
2CRE 010 001 060 2CRE 015 002 220
2CRE 010 001 080 1 X R0.1 1 4 45 4 2CRE 015 002 250 1.5 X R0.2 1.5 20 50 4
2CRE 010 001 100 1 X R0.1 1 6 45 4 2CRE 015 003 040 1.5 X R0.2 1.5 22 60 4
2CRE 010 001 120 1 X R0.1 1 8 45 4 2CRE 015 003 060 1.5 X R0.2 1.5 25 60 4
2CRE 010 001 160 1 X R0.1 1 10 50 4 2CRE 015 003 080 1.5 X R0.3 1.5 4 45 4
2CRE 010 001 200 1 X R0.1 1 12 50 4 2CRE 015 003 100 1.5 X R0.3 1.5 6 45 4
2CRE 010 001 220 1 X R0.1 1 16 50 4 2CRE 015 003 120 1.5 X R0.3 1.5 8 45 4
2CRE 010 001 250 1 X R0.1 1 20 50 4 2CRE 015 003 160 1.5 X R0.3 1.5 10 50 4
2CRE 010 002 040 1 X R0.1 1 22 60 4 2CRE 015 003 200 1.5 X R0.3 1.5 12 50 4
2CRE 010 002 060 1 X R0.1 1 25 60 4 2CRE 015 003 220 1.5 X R0.3 1.5 16 50 4
2CRE 010 002 080 1 X R0.2 1 4 45 4 2CRE 015 003 250 1.5 X R0.3 1.5 20 50 4
2CRE 010 002 100 1 X R0.2 1 6 45 4 2CRE 015 005 040 1.5 X R0.3 1.5 22 60 4
2CRE 010 002 120 1 X R0.2 1 8 45 4 2CRE 015 005 060 1.5 X R0.3 1.5 25 60 4
2CRE 010 002 160 1 X R0.2 1 10 50 4 2CRE 015 005 080 1.5 X R0.5 1.5 4 45 4
2CRE 010 002 200 1 X R0.2 1 12 50 4 2CRE 015 005 100 1.5 X R0.5 1.5 6 45 4
2CRE 010 002 220 1 X R0.2 1 16 50 4 2CRE 015 005 120 1.5 X R0.5 1.5 8 45 4
2CRE 010 002 250 1 X R0.2 1 20 50 4 2CRE 015 005 160 1.5 X R0.5 1.5 10 50 4
2CRE 010 003 040 1 X R0.2 1 22 60 4 2CRE 015 005 200 1.5 X R0.5 1.5 12 50 4
2CRE 010 003 060 1 X R0.2 1 25 60 4 2CRE 015 005 220 1.5 X R0.5 1.5 16 50 4
2CRE 010 003 080 1 X R0.3 1 4 45 4 2CRE 015 005 250 1.5 X R0.5 1.5 20 50 4
2CRE 010 003 100 1 X R0.3 1 6 45 4 2CRE 020 001 060 1.5 X R0.5 1.5 22 60 4
2CRE 010 003 120 1 X R0.3 1 8 45 4 2CRE 020 001 080 1.5 X R0.5 1.5 25 60 4
2CRE 010 003 160 1 X R0.3 1 10 50 4 2CRE 020 001 100 2 X R0.1 2 6 45 4
2CRE 010 003 200 1 X R0.3 1 12 50 4 2CRE 020 001 120 2 X R0.1 2 8 45 4
2CRE 010 003 220 1 X R0.3 1 16 50 4 2CRE 020 001 160 2 X R0.1 2 10 50 4
2CRE 010 003 250 1 X R0.3 1 20 50 4 2CRE 020 001 200 2 X R0.1 2 12 50 4
2CRE 012 001 040 1 X R0.3 1 22 60 4 2CRE 020 001 250 2 X R0.1 2 16 50 4
2CRE 012 001 060 1 X R0.3 1 25 60 4 2CRE 020 001 300 2 X R0.1 2 20 50 4
2CRE 012 001 080 1.2 X R0.1 1.2 4 45 4 2CRE 020 002 060 2 X R0.1 2 25 60 4
2CRE 012 001 100 1.2 X R0.1 1.2 6 45 4 2CRE 020 002 080 2 X R0.1 2 30 70 4
2CRE 012 001 120 1.2 X R0.1 1.2 8 45 4 2CRE 020 002 100 2 X R0.2 2 6 45 4
2CRE 012 001 160 1.2 X R0.1 1.2 10 50 4 2CRE 020 002 120 2 X R0.2 2 8 45 4
2CRE 012 001 200 1.2 X R0.1 1.2 12 50 4 2CRE 020 002 160 2 X R0.2 2 10 50 4
2CRE 012 002 040 1.2 X R0.1 1.2 16 50 4 2CRE 020 002 200 2 X R0.2 2 12 50 4
2CRE 012 002 060 1.2 X R0.1 1.2 20 50 4 2CRE 020 002 250 2 X R0.2 2 16 50 4
2CRE 012 002 080 1.2 X R0.2 1.2 4 45 4 2CRE 020 002 300 2 X R0.2 2 20 50 4
2CRE 012 002 100 1.2 X R0.2 1.2 6 45 4 2CRE 020 003 060 2 X R0.2 2 25 60 4
2CRE 012 002 120 1.2 X R0.2 1.2 8 45 4 2CRE 020 003 080 2 X R0.2 2 30 70 4
2CRE 012 002 160 1.2 X R0.2 1.2 10 50 4 2CRE 020 003 100 2 X R0.3 2 6 45 4
2CRE 012 002 200 1.2 X R0.2 1.2 12 50 4 2CRE 020 003 120 2 X R0.3 2 8 45 4
2CRE 012 003 040 1.2 X R0.2 1.2 16 50 4 2CRE 020 003 160 2 X R0.3 2 10 50 4
2CRE 012 003 060 1.2 X R0.2 1.2 20 50 4 2CRE 020 003 200 2 X R0.3 2 12 50 4
2CRE 012 003 080 1.2 X R0.3 1.2 4 45 4 2CRE 020 003 250 2 X R0.3 2 16 50 4
2CRE 012 003 100 1.2 X R0.3 1.2 6 45 4 2CRE 020 003 300 2 X R0.3 2 20 50 4
2CRE 012 003 120 1.2 X R0.3 1.2 8 45 4 2CRE 020 005 060 2 X R0.3 2 25 60 4
2CRE 012 003 160 1.2 X R0.3 1.2 10 50 4 2CRE 020 005 080 2 X R0.3 2 30 70 4
2CRE 012 003 200 1.2 X R0.3 1.2 12 50 4 2CRE 020 005 100 2 X R0.5 2 6 45 4
2CRE 015 001 040 1.2 X R0.3 1.2 16 50 4 2CRE 020 005 120 2 X R0.5 2 8 45 4
2CRE 015 001 060 1.2 X R0.3 1.2 20 50 4 2CRE 020 005 160 2 X R0.5 2 10 50 4
2CRE 015 001 080 1.5 X R0.1 1.5 4 45 4 2CRE 020 005 200 2 X R0.5 2 12 50 4
2CRE 015 001 100 1.5 X R0.1 1.5 6 45 4 2CRE 020 005 250 2 X R0.5 2 16 50 4
2CRE 015 001 120 1.5 X R0.1 1.5 8 45 4 2CRE 020 005 300 2 X R0.5 2 20 50 4
2CRE 015 001 160 1.5 X R0.1 1.5 10 50 4 2CRE 025 001 100 2 X R0.5 2 25 60 4
2CRE 015 001 200 1.5 X R0.1 1.5 12 50 4 2CRE 025 001 160 2 X R0.5 2 30 70 4
2CRE 015 001 220 1.5 X R0.1 1.5 16 50 4 2CRE 025 001 200 2.5 X R0.1 2.5 10 50 4
2CRE 015 001 250 1.5 X R0.1 1.5 20 50 4 2CRE 025 001 250 2.5 X R0.1 2.5 16 50 4
2CRE 015 002 040 1.5 X R0.1 1.5 22 60 4 2CRE 025 001 300 2.5 X R0.1 2.5 20 50 4
2CRE 015 002 060 1.5 X R0.1 1.5 25 60 4 2CRE 025 002 100 2.5 X R0.1 2.5 25 60 4
2CRE 015 002 080 1.5 X R0.2 1.5 4 45 4 2CRE 025 002 160 2.5 X R0.1 2.5 30 70 4
2CRE 015 002 100 1.5 X R0.2 1.5 6 45 4 2CRE 025 002 200 2.5 X R0.2 2.5 10 50 4
2CRE 015 002 120 1.5 X R0.2 1.5 8 45 4 2CRE 025 002 250 2.5 X R0.2 2.5 16 50 4
2CRE 015 002 160 1.5 X R0.2 1.5 10 50 4 2CRE 025 002 300 2.5 X R0.2 2.5 20 50 4
1.5 X R0.2 1.5 12 50 4 2.5 X R0.2 2.5 25 60 4
1.5 X R0.2 1.5 16 50 4 2.5 X R0.2 2.5 30 70 4

65 JJ TOOLS
