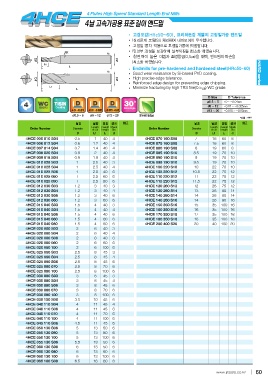

4 Flutes High Speed Standard Length End Mills

4

Endmills for pre-hardened and hardened steel (HRc50~60) HARD series
Good wear resistance by Si-based PVD coating.
High precise edge tolerance.
Reinforced edge design for preventing edge chipping.
Minimize fracturing by high TRS fine(0.5 ) WC grade.

0 0.01 0.01 0.025 0.015 0.03 D Size D Tolerance
0.5 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm
13 ~ 20 -0.015 ~ -0.03mm

0.5 ~ 5 6 ~ 12 13 ~ 20 Shield Edge mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia of cut Length Dia
4HCE 005 010 S04 D L1 L d 4HCE 070 160 S08 D L1 L d
4HCE 006 012 S04 4HCE 075 160 S08
4HCE 007 014 S04 0.5 1 40 4 4HCE 080 190 S08 7 16 60 8
4HCE 008 020 S04 0.6 1.2 40 4 4HCE 085 190 S10 7.5 16 60 8
4HCE 009 018 S04 0.7 1.4 40 4 4HCE 090 190 S10 8 19 60 8
4HCE 010 025 S03 0.8 2 40 4 4HCE 095 190 S10 8.5 19 70 10
4HCE 010 025 S04 0.9 1.8 40 4 4HCE 100 220 S10 9 19 70 10
4HCE 010 025 S06 1 2.5 40 3 4HCE 105 220 S12 9.5 19 70 10
4HCE 010 025 060 1 2.5 40 4 4HCE 110 220 S12 10 22 70 10
4HCE 010 025 080 1 2.5 40 6 4HCE 115 220 S12 10.5 22 75 12
4HCE 012 030 S03 1 2.5 60 6 4HCE 120 260 S12 11 22 75 12
4HCE 012 030 S04 1 2.5 80 6 4HCE 130 260 S14 11.5 22 75 12
4HCE 012 030 S06 1.2 3 40 3 4HCE 140 260 S14 12 26 75 12
4HCE 012 030 060 1.2 3 40 4 4HCE 140 260 S16 13 26 80 14
4HCE 015 040 S03 1.2 3 40 6 4HCE 150 350 S16 14 26 80 14
4HCE 015 040 S04 1.2 3 60 6 4HCE 160 350 S16 14 26 90 16
4HCE 015 040 S06 1.5 4 40 3 4HCE 170 350 S18 15 35 100 16
4HCE 015 040 060 1.5 4 40 4 4HCE 180 350 S18 16 35 100 16
4HCE 015 040 080 1.5 4 40 6 4HCE 200 400 S20 17 35 100 18
4HCE 020 060 S03 1.5 4 60 6 18 35 100 18
4HCE 020 060 S04 1.5 4 80 6 20 40 100 20
4HCE 020 060 S06 2 6 40 3
4HCE 020 060 060 2 6 40 4
4HCE 020 060 100 2 6 40 6
4HCE 025 080 S03 2 6 60 6
4HCE 025 080 S04 2 6 100 6
4HCE 025 080 S06 2.5 8 45 3
4HCE 025 080 070 2.5 8 45 4
4HCE 025 080 100 2.5 8 45 6
4HCE 030 080 S03 2.5 8 70 6
4HCE 030 080 S04 2.5 8 100 6
4HCE 030 080 S06 3 8 45 3
4HCE 030 080 070 3 8 45 4
4HCE 030 080 100 3 8 45 6
4HCE 035 100 S06 3 8 70 6
4HCE 040 110 S04 3 8 100 6
4HCE 040 110 S06 3.5 10 45 6
4HCE 040 110 070 4 11 45 4
4HCE 040 110 100 4 11 45 6
4HCE 045 110 S06 4 11 70 6
4HCE 050 130 S06 4 11 100 6
4HCE 050 130 080 4.5 11 45 6
4HCE 050 130 100 5 13 50 6
4HCE 055 130 S06 5 13 80 6
4HCE 060 130 S06 5 13 100 6
4HCE 060 130 080 5.5 13 50 6
4HCE 060 130 100 6 13 50 6
4HCE 065 160 S08 6 13 80 6
6 13 100 6
6.5 16 60 8
