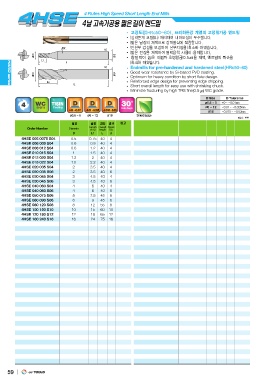

4 Flutes High Speed Short Length End Mills

4

HARD series Endmills for pre-hardened and hardened steel (HRc50~60)
Good wear resistance by Si-based PVD coating.
Optimum for heavy condition by short flute design.
Reinforced edge design for preventing edge chipping.
Short overall length for easy use with shrinking chuck.

Minimize fracturing by high TRS fine(0.5 ) WC grade.

0 0.01 0.01 0.025 0.015 0.03 D Size D Tolerance
0.5 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm
-0.015 ~ -0.03mm
16
mm
0.5 ~ 5 6 ~ 12 16 Shield Edge

Order Number Diameter Length Overall Shank
of cut Length Dia
4HSE 005 0075 S04 D L1 L d
4HSE 006 009 S04
4HSE 008 012 S04 0.5 0.75 40 4
4HSE 010 015 S04 0.6 0.9 40 4
4HSE 012 020 S04 0.8 1.2 40 4
4HSE 015 022 S04 1 1.5 40 4
4HSE 020 035 S04 1.2 2 40 4
4HSE 020 035 S06 1.5 2.2 40 4
4HSE 030 045 S04 2 3.5 40 4
4HSE 030 045 S06 2 3.5 40 6
4HSE 040 060 S04 3 4.5 40 4
4HSE 040 060 S06 3 4.5 40 6
4HSE 050 075 S06 4 6 40 4
4HSE 060 090 S06 4 6 40 6
4HSE 080 120 S08 5 7.5 45 6
4HSE 100 150 S10 6 9 45 6
4HSE 120 180 S12 8 12 55 8
4HSE 160 240 S16 10 15 60 10
12 18 65 12
16 24 75 16

59 JJ TOOLS
