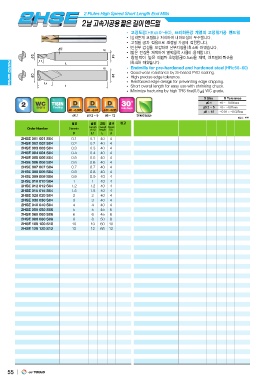

2 Flutes High Speed Short Length End Mills

2

HARD series Endmills for pre-hardened and hardened steel (HRc50~60)
Good wear resistance by Si-based PVD coating.
High precise edge tolerance.
Reinforced edge design for preventing edge chipping.
Short overall length for easy use with shrinking chuck.

Minimize fracturing by high TRS fine(0.5 ) WC grade.

0 0.005 0 0.01 0.01 0.025 D Size D Tolerance
0.1 0.2 ~ 5 6 ~ 12 0.1 +0 ~ -0.005mm
+0 ~ -0.01mm
0.2 ~ 5 -0.01 ~ -0.025mm
6 ~ 12
mm
Shield Edge

Order Number Diameter Length Overall Shank
of cut Length Dia
2HSE 001 001 S04 D L1 L d
2HSE 002 002 S04
2HSE 003 003 S04 0.1 0.1 40 4
2HSE 004 004 S04 0.2 0.2 40 4
2HSE 005 005 S04 0.3 0.3 40 4
2HSE 006 006 S04 0.4 0.4 40 4
2HSE 007 007 S04 0.5 0.5 40 4
2HSE 008 008 S04 0.6 0.6 40 4
2HSE 009 009 S04 0.7 0.7 40 4
2HSE 010 010 S04 0.8 0.8 40 4
2HSE 012 012 S04 0.9 0.9 40 4
2HSE 015 015 S04 1 1 40 4
2HSE 020 020 S04 1.2 1.2 40 4
2HSE 030 030 S04 1.5 1.5 40 4
2HSE 040 040 S04 2 2 40 4
2HSE 050 050 S06 3 3 40 4
2HSE 060 060 S06 4 4 40 4
2HSE 080 080 S08 5 5 45 6
2HSE 100 100 S10 6 6 45 6
2HSE 120 120 S12 8 8 50 8
10 10 60 10
12 12 65 12
