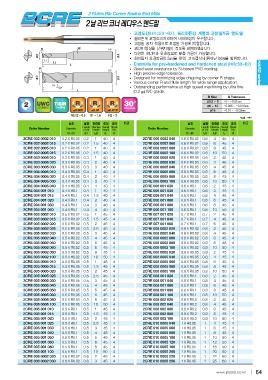

2 Flutes Rib Corner Radius End Mills

2

Endmills for pre-hardened and hardened steel (HRc50~62) HARD series
Good wear resistance by Si-based PVD coating.
High precise edge tolerance.
Designed for minimizing edge chipping by corner R shape.
Various corner R and flute length for wide range application.
Outstanding performance at high speed machining by ultra fine
(0.2 ) WC grade.

0.005 0.01 0.015 D Size D Tolerance
R2 ~ 3 0.2 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm
-0.01 ~ -0.02mm
16

R0.02 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
DR of cut Length Length Dia DR of cut Length Length Dia
2CRE 002 0002 010 2CRE 006 0002 040
2CRE 002 0002 015 L1 L2 L d 2CRE 006 0002 060 L1 L2 L d
2CRE 002 0005 010 2CRE 006 0002 080
2CRE 002 0005 015 0.2 X R0.02 0.2 1 40 4 2CRE 006 0002 100 0.6 X R0.02 0.6 4 45 4
2CRE 003 0005 010 0.2 X R0.02 0.2 1.5 40 4 2CRE 006 0005 020 0.6 X R0.02 0.6 6 45 4
2CRE 003 0005 020 0.2 X R0.05 0.2 1 40 4 2CRE 006 0005 030 0.6 X R0.02 0.6 8 45 4
2CRE 003 0005 030 0.2 X R0.05 0.2 1.5 40 4 2CRE 006 0005 040 0.6 X R0.02 0.6 10 50 4
2CRE 004 0005 010 0.3 X R0.05 0.3 1 40 4 2CRE 006 0005 060 0.6 X R0.05 0.6 2 45 4
2CRE 004 0005 020 0.3 X R0.05 0.3 2 40 4 2CRE 006 0005 080 0.6 X R0.05 0.6 3 45 4
2CRE 004 0005 030 0.3 X R0.05 0.3 3 40 4 2CRE 006 0005 100 0.6 X R0.05 0.6 4 45 4
2CRE 004 0005 040 0.4 X R0.05 0.4 1 40 4 2CRE 006 001 020 0.6 X R0.05 0.6 6 45 4
2CRE 004 001 010 0.4 X R0.05 0.4 2 40 4 2CRE 006 001 030 0.6 X R0.05 0.6 8 45 4
2CRE 004 001 015 0.4 X R0.05 0.4 3 40 4 2CRE 006 001 040 0.6 X R0.05 0.6 10 50 4
2CRE 004 001 020 0.4 X R0.05 0.4 4 40 4 2CRE 006 001 060 0.6 X R0.1 0.6 2 45 4
2CRE 004 001 030 0.4 X R0.1 0.4 1 40 4 2CRE 006 001 080 0.6 X R0.1 0.6 3 45 4
2CRE 004 001 040 0.4 X R0.1 0.4 1.5 40 4 2CRE 006 001 100 0.6 X R0.1 0.6 4 45 4
2CRE 005 0002 010 0.4 X R0.1 0.4 2 40 4 2CRE 007 001 020 0.6 X R0.1 0.6 6 45 4
2CRE 005 0002 015 0.4 X R0.1 0.4 3 40 4 2CRE 007 001 040 0.6 X R0.1 0.6 8 45 4
2CRE 005 0002 020 0.4 X R0.1 0.4 4 40 4 2CRE 007 001 060 0.6 X R0.1 0.6 10 50 4
2CRE 005 0002 025 0.5 X R0.02 0.5 1 45 4 2CRE 008 0002 020 0.7 X R0.1 0.7 2 45 4
2CRE 005 0002 030 0.5 X R0.02 0.5 1.5 45 4 2CRE 008 0002 040 0.7 X R0.1 0.7 4 45 4
2CRE 005 0002 040 0.5 X R0.02 0.5 2 45 4 2CRE 008 0002 060 0.7 X R0.1 0.7 6 45 4
2CRE 005 0002 050 0.5 X R0.02 0.5 2.5 45 4 2CRE 008 0002 080 0.8 X R0.02 0.8 2 45 4
2CRE 005 0002 060 0.5 X R0.02 0.5 3 45 4 2CRE 008 0002 100 0.8 X R0.02 0.8 4 45 4
2CRE 005 0002 080 0.5 X R0.02 0.5 4 45 4 2CRE 008 0005 020 0.8 X R0.02 0.8 6 45 4
2CRE 005 0002 100 0.5 X R0.02 0.5 5 45 4 2CRE 008 0005 040 0.8 X R0.02 0.8 8 45 4
2CRE 005 0005 010 0.5 X R0.02 0.5 6 45 4 2CRE 008 0005 060 0.8 X R0.02 0.8 10 50 4
2CRE 005 0005 015 0.5 X R0.02 0.5 8 45 4 2CRE 008 0005 080 0.8 X R0.05 0.8 2 45 4
2CRE 005 0005 020 0.5 X R0.02 0.5 10 50 4 2CRE 008 0005 100 0.8 X R0.05 0.8 4 45 4
2CRE 005 0005 025 0.5 X R0.05 0.5 1 45 4 2CRE 008 001 020 0.8 X R0.05 0.8 6 45 4
2CRE 005 0005 030 0.5 X R0.05 0.5 1.5 45 4 2CRE 008 001 040 0.8 X R0.05 0.8 8 45 4
2CRE 005 0005 040 0.5 X R0.05 0.5 2 45 4 2CRE 008 001 060 0.8 X R0.05 0.8 10 50 4
2CRE 005 0005 050 0.5 X R0.05 0.5 2.5 45 4 2CRE 008 001 080 0.8 X R0.1 0.8 2 45 4
2CRE 005 0005 060 0.5 X R0.05 0.5 3 45 4 2CRE 008 001 100 0.8 X R0.1 0.8 4 45 4
2CRE 005 0005 080 0.5 X R0.05 0.5 4 45 4 2CRE 008 002 020 0.8 X R0.1 0.8 6 45 4
2CRE 005 0005 100 0.5 X R0.05 0.5 5 45 4 2CRE 008 002 040 0.8 X R0.1 0.8 8 45 4
2CRE 005 001 010 0.5 X R0.05 0.5 6 45 4 2CRE 008 002 060 0.8 X R0.1 0.8 10 50 4
2CRE 005 001 015 0.5 X R0.05 0.5 8 45 4 2CRE 008 002 080 0.8 X R0.2 0.8 2 45 4
2CRE 005 001 020 0.5 X R0.05 0.5 10 50 4 2CRE 008 002 100 0.8 X R0.2 0.8 4 45 4
2CRE 005 001 025 0.5 X R0.1 0.5 1 45 4 2CRE 010 0005 040 0.8 X R0.2 0.8 6 45 4
2CRE 005 001 030 0.5 X R0.1 0.5 1.5 45 4 2CRE 010 0005 060 0.8 X R0.2 0.8 8 45 4
2CRE 005 001 040 0.5 X R0.1 0.5 2 45 4 2CRE 010 0005 080 0.8 X R0.2 0.8 10 50 4
2CRE 005 001 050 0.5 X R0.1 0.5 2.5 45 4 2CRE 010 0005 100 1 X R0.05 1 4 45 4
2CRE 005 001 060 0.5 X R0.1 0.5 3 45 4 2CRE 010 0005 120 1 X R0.05 1 6 45 4
2CRE 005 001 080 0.5 X R0.1 0.5 4 45 4 2CRE 010 0005 160 1 X R0.05 1 8 45 4
2CRE 005 001 100 0.5 X R0.1 0.5 5 45 4 2CRE 010 0005 200 1 X R0.05 1 10 50 4
2CRE 006 0002 020 0.5 X R0.1 0.5 6 45 4 2CRE 010 0005 220 1 X R0.05 1 12 50 4
2CRE 006 0002 030 0.5 X R0.1 0.5 8 45 4 2CRE 010 0005 250 1 X R0.05 1 16 50 4
0.5 X R0.1 0.5 10 50 4 1 X R0.05 1 20 50 4
0.6 X R0.02 0.6 2 45 4 1 X R0.05 1 22 60 4
0.6 X R0.02 0.6 3 45 4 1 X R0.05 1 25 60 4
