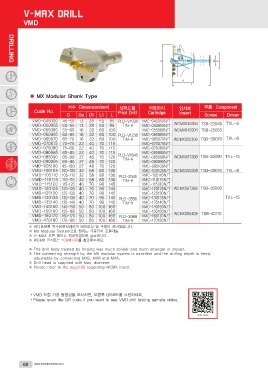

VMD

DRILLING

● MX Modular Shank Type

Code No. 치수 Dimension(mm) 센터드릴 카트리지 인서트 부품 Component
D Ds D1 L1 L Pilot Drill Cartridge Insert Screw Driver
VMC-045050N/T
VMD-045050 45-50 13 28 50 85 PLD-V1035 VMC-050055N/T WCMX030204 TSB-22045 TXL-6
VMD-050055 50-55 13 28 50 85 TiN-H VMC-055060N/T WCMX040204 TSB-25055
VMD-055060 55-60 16 32 60 100 VMC-060065N/T
VMD-060065 60-65 16 32 60 100 PLD-V1238 VMC-065070N/T
VMD-065070 65-70 16 32 60 100 TiN-H VMC-070075N/T WCMX050308 TSB-30070 TXL-8
VMD-070075 70-75 22 40 70 115 VMC-075080N/T
VMD-075080 75-80 22 40 70 115 VMC-080085N/T
VMD-080085 80-85 22 40 70 115 VMC-085090N/T
VMD-085090 85-90 27 48 70 120 PLD-V1645 VMC-090095N/T WCMX06T308 TSB-35090 TXL-15
VMD-090095 90-95 27 48 70 120 TiN-H VMC-095100N/T WCMX050308 TSB-30070 TXL-8
VMD-095100 95-100 27 VMC-100105N/T
VMD-100105 100-105 32 48 70 120 VMC-105110N/T
VMD-105110 105-110 32 58 80 130 VMC-110115N/T
VMD-110115 110-115 32 58 80 130 VMC-115120N/T
VMD-115120 115-120 40 58 80 130 PLD-2045 VMC-120125N/T
VMD-120125 120-125 40 70 90 145 TiN-H VMC-125130N/T
VMD-125130 125-130 40 VMC-130135N/T
VMD-130135 130-135 40 70 90 145 VMC-135140N/T WCMX06T308 TSB-35090
VMD-135140 135-140 40 70 90 145 VMC-140150N/T TXL-15
VMD-140150 140-150 50 70 90 145 VMC-150160N/T
VMD-150160 150-160 50 70 90 145 PLD-2556 VMC-160170N/T WCMX080408 TSB-40110
VMD-160170 160-170 50 80 100 160 TiN-H VMC-170180N/T
VMD-170180 170-180 50
80 100 160
80 100 160 PLD-3068
80 100 160 TiN-H

※ 바디표면을 특수표면처리하여 내마모성 및 수명이 길어졌습니다.
※ MX Modular System으로 원하는 가공깊이 조절가능.
※ V-MAX 드릴 헤드는 최대직경으로 공급됩니다.
※ WCMX 인서트는 108페이지를 참조해주세요.

※ The drill body treated by forging was much solider and much stronger in impact.
※ The connecting strength by the MX modular system is excellent and the drilling depth is freely

adjustable by connecting MXB, MXR and MXA.
※ Drill head is supplied with Max. diameter
※ Please refer to the page108 regarding WCMX insert.

•VMD 드릴 가공 동영상을 보시려면, 오른쪽 QR코드를 스캔하세요.
•Please scan the QR code if you want to see VMD drill testing sample video.
