고속 가공 전용

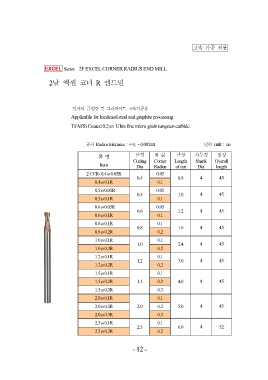

EXCEL series 2F EXCEL CORNER RADIUS END MILL
2날 엑셀 코너 R 엔드밀

열처리 금형강 및 그라파이트 고속가공용

Applicable for hardened steel and graphite processing
Ti/Al/Si Coated 0.2㎛ Ultra fine micro grain tungsten carbide

공차 Radius tolerance :+ 0, - 0.005㎜ 단위 unit : ㎜

품명 날경 R값 날장 자루경 전장
Item Cutting Corner Length
2 CCR- 0.4 ø 0.05R Radius of cut Shank Overall
0.4 ø 0.1R Dia 0.05 Dia length
0.5 ø 0.05R 0.4 0.8
0.5 ø 0.1R 0.5 0.1 1.0 4 45
0.6 ø 0.05R 0.6 0.05 1.2
0.6 ø 0.1R 0.8 0.1 1.6 4 45
0.8 ø 0.1R 1.0 0.05 2.4
0.8 ø 0.2R 1.2 0.1 3.0 4 45
1.0 ø 0.1R 0.1
1.0 ø 0.2R 1.5 0.2 4.0 4 45
1.2 ø 0.1R 0.1
1.2 ø 0.2R 2.0 0.2 5.0 4 45
1.5 ø 0.1R 0.1
1.5 ø 0.2R 2.5 0.2 6.0 4 45
1.5 ø 0.3R 0.1
2.0 ø 0.1R 0.2 4 45
2.0 ø 0.2R 0.3
2.0 ø 0.3R 0.1 4 45
2.5 ø 0.1R 0.2 4 52
2.5 ø 0.2R 0.3
0.1
0.2

- 12 -
