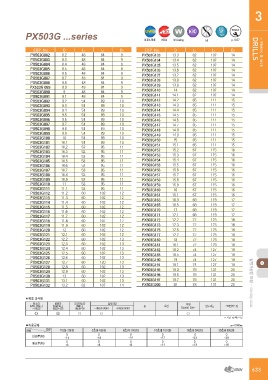

일반가공용 드릴PX503G ...series 3

파워 드릴 ▶3xD 절삭조건

ULTRA FINE HELIX W Coating 140° > Metric & Inch

EDP. No. D L1 L2 D2 EDP. No. D L1 h8 p.1037 DRILLS
PX503G082 PX503G133 13.3 62
PX503G083 8.2 48 84 9 PX503G134 13.4 62 L2 D2
PX503G135 13.5 62 107 14
PX503G084 8.3 48 84 9 PX503G136 13.6 62 107 14
PX503G137 13.7 62 107 14
PX503G085 8.4 48 84 9 PX503G138 13.8 62 107 14
PX503G139 13.9 62 107 14
PX503G086 8.5 48 84 9 PX503G140 14 62 107 14
PX503G141 14.1 62 107 14
PX503G087 8.6 48 84 9 PX503G142 14.2 65 107 14
PX503G143 14.3 65 107 14
PX503G088 8.7 48 84 9 PX503G144 14.4 65 111 15
PX503G145 14.5 65 111 15
PX503G 089 8.8 48 84 9 PX503G146 14.6 65 111 15
PX503G147 14.7 65 111 15
PX503G090 8.9 48 84 9 PX503G148 14.8 65 111 15
PX503G149 14.9 65 111 15
PX503G091 9 48 84 9 PX503G150 15 65 111 15
PX503G151 15.1 65 111 15
PX503G092 9.1 48 84 9 PX503G152 15.2 67 111 15
PX503G153 15.3 67 111 15
PX503G093 9.2 51 89 10 PX503G154 15.4 67 115 16
PX503G155 15.5 67 115 16
PX503G094 9.3 51 89 10 PX503G156 15.6 67 115 16
PX503G157 15.7 67 115 16
PX503G095 9.4 51 89 10 PX503G158 15.8 67 115 16
PX503G159 15.9 67 115 16
PX503G096 9.5 51 89 10 PX503G160 16 67 115 16
PX503G161 16.1 67 115 16
PX503G097 9.6 51 89 10 PX503G163 16.3 69 115 16
PX503G165 16.5 69 115 16
PX503G098 9.7 51 89 10 PX503G170 17 69 119 17
PX503G171 17.1 69 119 17
PX503G099 9.8 51 89 10 PX503G172 17.2 72 119 17
PX503G173 17.3 72 119 17
PX503G100 9.9 51 89 10 PX503G175 17.5 72 123 18
PX503G177 17.7 72 123 18
PX503G101 10 51 89 10 PX503G180 18 72 123 18
PX503G181 18.1 72 123 18
PX503G102 10.1 51 89 10 PX503G182 18.2 74 123 18
PX503G185 18.5 74 123 18
PX503G103 10.2 53 95 11 PX503G190 19 74 127 19
PX503G191 19.1 74 127 19
PX503G104 10.3 53 95 11 PX503G193 19.3 78 127 19
PX503G195 19.5 78 127 19
PX503G105 10.4 53 95 11 PX503G197 19.7 78 131 20
PX503G200 20 78 131 20
PX503G106 10.5 53 95 11 131 20
131 20
PX503G107 10.6 53 95 11

PX503G108 10.7 53 95 11

PX503G109 10.8 53 95 11

PX503G110 10.9 53 95 11

PX503G111 11 53 95 11

PX503G112 11.1 53 95 11

PX503G113 11.2 60 102 12

PX503G114 11.3 60 102 12

PX503G115 11.4 60 102 12

PX503G116 11.5 60 102 12

PX503G117 11.6 60 102 12

PX503G118 11.7 60 102 12

PX503G119 11.8 60 102 12

PX503G120 11.9 60 102 12

PX503G121 12 60 102 12

PX503G122 12.1 60 102 12

PX503G123 12.2 60 102 13

PX503G124 12.3 60 102 13

PX503G125 12.4 60 102 13

PX503G126 12.5 60 102 13

PX503G127 12.6 60 102 13 알번가공용 드릴 - 파워 드릴 시리즈

PX503G128 12.7 60 120 13

PX503G129 12.8 60 102 13

PX503G130 12.9 60 102 13

PX503G131 13 60 102 13

PX503G132 13.1 60 102 13

13.2 62 107 14

■적용 피삭재 합금강 프리하든강 열처리강 동 흑연 주철 알루미늄 스테인리스강
(SCM, SK...) (NAK...) FCD400. 500~ ○:적합 ◎:매우적합
탄소강 HB225~325 ~HRc55 SKD61 ~HRc55 SKD11
(S45C, S55C...) HRc30~50 ○
◎ ○
~ HB225 ○

◎

■허용공차 1이상 3이하 3초과 6이하 6초과 10이하 10초과 18이하 18초과 30이하 ㎛=1/1000㎜
공차 외경
0 0 0 0 0 30초과 50이하
인선부(h8) -14 -18 -22 -27 -33 0
0 0 0 0 0 -39
생크부(h6) -6 -8 -9 -11 -13 0
-16
