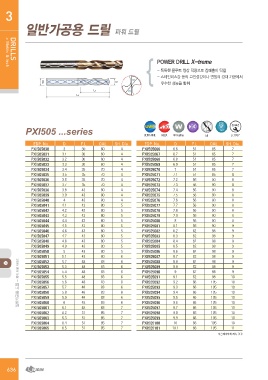

Page 636 - widin

3

일반가공용 드릴 파워 드릴
D
POWER DRILL X-treme
D2
- 독특한 플루트 형상 적용으로 칩배출이 탁월
DRILLS - 스테인리스강 등의 고인성강이나 연질의 강재 가공에서

> Metric & Inch 우수한 성능을 발휘

L1
L2

PXI505 ...series ▶5xD 절삭조건

ULTRA FINE HELIX W Coating 140°

일반가공용 드릴 - 파워 드릴 시리즈 EDP. No. D F.L OAL SH. Dia. EDP. No. D F.L h8 p.1037
PXI505030 3 30 60 4 PXI505066 6.6 51
PXI505031 3.1 30 60 4 PXI505067 6.7 51 OAL SH. Dia.
PXI505032 3.2 30 60 4 PXI505068 6.8 51 85 7
PXI505033 3.3 30 60 4 PXI505069 6.9 51 85 7
PXI505034 3.4 35 70 4 PXI505070 7 51 85 7
PXI505035 3.5 35 70 4 PXI505071 7.1 51 85 7
PXI505036 3.6 35 70 4 PXI505072 7.2 56 85 7
PXI505037 3.7 35 70 4 PXI505073 7.3 56 85 8
PXI505038 3.8 43 80 4 PXI505074 7.4 56 90 8
PXI505039 3.9 43 80 4 PXI505075 7.5 56 90 8
PXI505040 4 43 80 4 PXI505076 7.6 56 90 8
PXI505041 4.1 43 80 5 PXI505077 7.7 56 90 8
PXI505042 4.2 43 80 5 PXI505078 7.8 56 90 8
PXI505043 4.3 43 80 5 PXI505079 7.9 56 90 8
PXI505044 4.4 43 80 5 PXI505080 8 56 90 8
PXI505045 4.5 43 80 5 PXI505081 8.1 56 90 8
PXI505046 4.6 43 80 5 PXI505082 8.2 62 90 8
PXI505047 4.7 43 80 5 PXI505083 8.3 62 90 9
PXI505048 4.8 43 80 5 PXI505084 8.4 62 98 9
PXI505049 4.9 43 80 5 PXI505085 8.5 62 98 9
PXI505050 5 43 80 5 PXI505086 8.6 62 98 9
PXI505051 5.1 43 80 6 PXI505087 8.7 62 98 9
PXI505052 5.2 48 83 6 PXI505088 8.8 62 98 9
PXI505053 5.3 48 83 6 PXI505089 8.9 62 98 9
PXI505054 5.4 48 83 6 PXI505090 9 62 98 9
PXI505055 5.5 48 83 6 PXI505091 9.1 62 98 9
PXI505056 5.6 48 83 6 PXI505092 9.2 66 98 9
PXI505057 5.7 48 83 6 PXI505093 9.3 66 98 10
PXI505058 5.8 48 83 6 PXI505094 9.4 66 105 10
PXI505059 5.9 48 83 6 PXI505095 9.5 66 105 10
PXI505060 6 48 83 6 PXI505096 9.6 66 105 10
PXI505061 6.1 48 83 7 PXI505097 9.7 66 105 10
PXI505062 6.2 51 85 7 PXI505098 9.8 66 105 10
PXI505063 6.3 51 85 7 PXI505099 9.9 66 105 10
PXI505064 6.4 51 85 7 PXI505100 10 66 105 10
PXI505065 6.5 51 85 7 PXI505101 10.1 66 105 10
105 10
105 11

다음페이지에 계속

636
