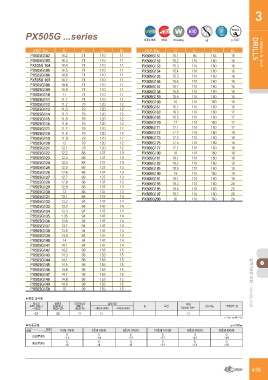

일반가공용 드릴PX505G ...series 3

파워 드릴 ▶3xD 절삭조건
140°
ULTRA FINE HELIX W Coating h8 > Metric & Inch
p.1037
DRILLS
EDP. No. D L1 L2 D2 EDP. No. D L1 L2 D2
15
PX505G102 10.2 71 110 11 PX505G151 15.1 98 153 16
16
PX505G103 10.3 71 110 11 PX505G152 15.2 110 160 16
16
PX505G 104 10.4 71 110 11 PX505G153 15.3 110 160 16
16
PX505G105 10.5 71 110 11 PX505G154 15.4 110 160 16
16
PX505G106 10.6 71 110 11 PX505G155 15.5 110 160 16
16
PX505G 107 10.7 71 110 11 PX505G156 15.6 110 160 17
17
PX505G108 10.8 71 110 11 PX505G157 15.7 110 160 17
17
PX505G109 10.9 71 110 11 PX505G158 15.8 110 160 18
18
PX505G110 11 71 110 11 PX505G159 15.9 110 160 18
18
PX505G111 11.1 71 110 11 PX505G160 16 110 160 18
18
PX505G112 11.2 79 120 12 PX505G161 16.1 110 160 19
19
PX505G113 11.3 79 120 12 PX505G163 16.3 110 160 19
19
PX505G114 11.4 79 120 12 PX505G165 16.5 110 160 20
20
PX505G115 11.5 79 120 12 PX505G170 17 110 160 20
20
PX505G116 11.6 79 120 12 PX505G171 17.1 110 160

PX505G171 11.7 79 120 12 PX505G172 17.2 110 160

PX505G118 11.8 79 120 12 PX505G173 17.3 110 160

PX505G119 11.9 79 120 12 PX505G175 17.5 110 160

PX505G120 12 79 120 12

PX505G121 12.1 79 120 12 PX505G177 17.7 110 160

PX505G122 12.2 88 137 13 PX505G180 18 110 160

PX505G123 12.3 88 137 13 PX505G181 18.1 110 160

PX505G124 12.4 88 137 13 PX505G182 18.2 110 160

PX505G125 12.5 88 137 13 PX505G185 18.5 110 160

PX505G126 12.6 88 137 13 PX505G190 19 110 160

PX505G127 12.7 88 137 13 PX505G191 19.1 110 160

PX505G128 12.8 88 137 13 PX505G193 19.3 110 160

PX505G129 12.9 88 137 13 PX505G195 19.5 110 160

PX505G130 13 88 137 13 PX505G197 19.7 110 160

PX505G131 13.1 88 137 13 PX505G200 20 110 160

PX505G132 13.2 94 147 14

PX505G133 13.3 94 147 14

PX505G134 13.4 94 147 14

PX505G135 1.35 94 147 14

PX505G136 13.6 94 147 14

PX505G137 13.7 94 147 14

PX505G138 13.8 94 147 14

PX505G139 13.9 94 147 14

PX505G140 14 94 147 14

PX505G141 14.1 94 147 14

PX505G142 14.2 98 153 15

PX505G143 14.3 98 153 15

PX505G144 14.1 98 153 15 알번가공용 드릴 - 파워 드릴 시리즈

PX505G145 14.5 98 153 15

PX505G146 14.6 98 153 15

PX505G147 14.7 98 153 15

PX505G148 14.8 98 153 15

PX505G149 14.9 98 153 15

PX505G150 15 98 153 15

■적용 피삭재 합금강 프리하든강 열처리강 동 흑연 주철 알루미늄 스테인리스강
(SCM, SK...) (NAK...) FCD400. 500~ ○:적합 ◎:매우적합
탄소강 HB225~325 ~HRc55 SKD61 ~HRc55 SKD11
(S45C, S55C...) HRc30~50 ○
◎ ○
~ HB225 ○

◎

■허용공차 1이상 3이하 3초과 6이하 6초과 10이하 10초과 18이하 18초과 30이하 ㎛=1/1000㎜
공차 외경
0 0 0 0 0 30초과 50이하
인선부(h8) -14 -18 -22 -27 -33 0
0 0 0 0 0 -39
생크부(h6) -6 -8 -9 -11 -13 0
-16

635
