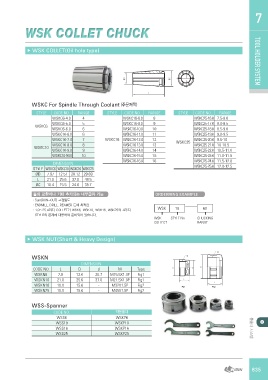

WSK COLLET CHUCK TOOL HOLDER7

▶ WSK COLLET(Oil hole type) TOOL HOLDER SYSTEM

WSKC For Spindle Through Coolant (주문제작)

STYLE CODE NO. RANGE STYLE CODE NO. RANGE STYLE CODE NO. RANGE
WSKC6 WSKC6-4.0 4 WSKC16 WSKC16-8.0 8 WSKC25 WSKC25-16.0 7.5-8.0
WSKC6-5.0 5 WSKC16-9.0 9 WSKC25-17.0 8.0-8.5
WSKC10 WSKC6-6.0 6 WSKC16-10.0 10 WSKC25-18.0 8.5-9.0
WSKC10-6.0 6 WSKC16-11.0 11 WSKC25-19.0 9.0-9.5
WSKC10-7.0 7 WSKC16-12.0 12 WSKC25-20.0 9.5-10
WSKC10-8.0 8 WSKC16-13.0 13 WSKC25-21.0 10-10.5
WSKC10-9.0 9 WSKC16-14.0 14 WSKC25-22.0 10.5-11.0
WSKC10-10.0 10 WSKC16-15.0 15 WSKC25-23.0 11.0-11.5
WSKC16-16.0 16 WSKC25-24.0 11.5-12.0
DIMENSION WSKC25-25.0 12.0-12.5
STYLE WSKC6 WSKC10 WSKC16 WSKC25

ØD 7.97 12.51 20.12 29.69
L 21.0 25.6 37.0 48.5
ØC 10.4 15.5 24.6 35.7

툴의 교환이나 기타 추가되는 내부급유 가능 ORDERRING EXAMPLE

ㆍ5 um(RUN-OUT) 고정밀도 WSK 16 60
ㆍENDMILL, DRILL, REAMER 등에 최적합
ㆍ1 .0~25.4까지 COLLET가 WSK6, WSK10, WSK16, WSK25의 4가지 WSK STYLE No CHUCKING
RANGE
STYLE의 본제체 대응하여 준비되어 있습니다.

COLLECT

▶ WSK NUT(Short & Heavy Design)

WSKN

CODE NO. L DIMENSION M Type
WSKN6 7.8 Dd M15.5X1.0P Fig1
WSKN10 21.0 12.0 20.7 M21.5X1.0P Fig1
WSKN16 10.0 25.6 37.0 M32X1.5P Fig2
WSKN25 10.0 15.0 - M45X1.5P Fig2
15.0 -

WSS-Spanner 적용홀더 툴홀더 시스템

CODE NO. WSKP6
WSS6 WSKP10
WSS10 WSKP16
WSS16 WSKP25
WSS25
