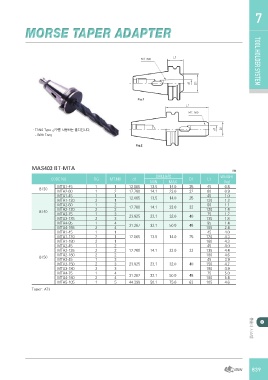

MORSE TAPER ADAPTER TOOL HOLDER7

TOOL HOLDER SYSTEM

ㆍTANG Type 공구를 사용하는 홀더입니다.
- With Tang

MAS403 BT-MTA ㎜

CODE NO. FIG MT.NO d1 DRILL능력 D1 L1 WEIGHT
MIN MAX (kg)

BT30 MTA1-45 1 1 12.065 13.5 14.0 25 45 0.8
BT40 MTA2-60 1 2 17.780 14.1 23.0 32 60 0.9
MTA1-45 1 1 45 1.0
BT50 MTA1-120 2 1 12.065 13.5 14.0 25 120 1.3
MTA2-60
MTA2-120 1 2 17.780 14.1 23.0 32 60 1.1
MTA3-75 2 2 120 1.4
MTA3-135 1 3 75 1.2
MTA4-95 2 3 23.825 23.1 32.0 40 135 1.8
MTA4-165
MTA1-45 1 4 31.267 32.1 50.0 48 95 1.4
MTA1-120 2 4 165 2.4
MTA1-180 11 45 4.0
MTA2-45 2 1 12.065 13.5 14.0 25 120 4.3
MTA2-135 21 180 4.3
MTA2-180 12 45 4.0
MTA3-45 2 2 17.780 14.1 23.0 32 135 4.4
MTA3-150 22 180 4.6
MTA3-180 13 45 3.9
MTA4-75 2 3 23.825 23.1 32.0 40 150 4.7
MTA4-180 23 180 4.9
MTA5-105 1 4 75 5.0
2 4 31.267 32.1 50.0 48 180 5.4

1 5 44.399 50.1 75.0 63 105 4.6

Taper : AT3
